Incremental encoders

Large hollow shaft
robust, optical A02H (hollow shaft) Push-Pull / RS422 / SinCos
www.HydroSanatSharif.com

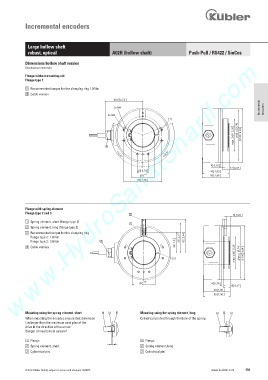

Dimensions hollow shaft version
Dimensions in mm [inch]

Flange without mounting aid
Flange type 1
1 Recommended torque for the clamping ring 1.0 Nm
B Cable version

Incremental encoders
[ 0
[ 0

> @
K

PD[
%
ƒ
ƒ

' +

Flange with spring element
Flange type 2 and 3

1 Spring element, short (flange type 2)
2 Spring element, long (flange type 3)
3 Recommended torque for the clamping ring
flange type 2: 1.0 Nm
flange type 3: 2.0 Nm % %
B Cable version > @ > @
K K
PD[ PD[

+
+
' '

Mounting using the spring element, short 3 2 1 Mounting using the spring element, long 3 2 1
When mounting the encoder, ensure that dimension Cylindrical pin fed through the bore of the spring
L is larger than the maximum axial play of the
drive in the direction of the arrow.
Danger of mechanical seizure!

1 Flange 1 Flange
L
2 Spring element, short 2 Spring element, long
3 Cylindrical pin 3 Cylindrical pin

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 131
