Incremental encoders

Standard
optical Sendix 5000 / 5020 (shaft / hollow shaft) Push-Pull / RS422
www.HydroSanatSharif.com

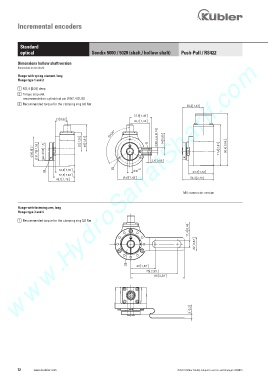

Dimensions hollow shaft version
Dimensions in mm [inch]

Flange with spring element, long
Flange type 1 and 2
1 M3, 6 [0.24] deep
2 Torque stop slot,
recommendation: cylindrical pin DIN7, 4 [0.16]
3 Recommended torque for the clamping ring 0.6 Nm

[ ƒ > @

PD[

+
'

MIL-connector version

Flange with fastening arm, long
Flange type 3 and 4
1 Recommended torque for the clamping ring 0.6 Nm
