P. 71
Incremental encoders
Standard
optical Sendix 5000 / 5020 (shaft / hollow shaft) Push-Pull / RS422
www.HydroSanatSharif.com

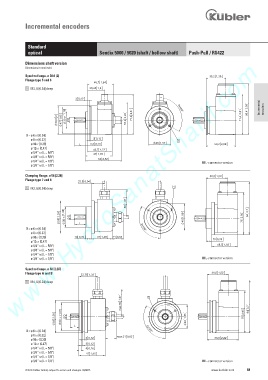

Dimensions shaft version
Dimensions in mm [inch]
Synchro flange, ø 50.8 [2]
Flange type 5 and 6
1 M3, 6 [0.24] deep
Incremental encoders
K 18
[
'
D = ø 6 h7 [0.24]
ø 8 h7 [0.32]
ø 10 f7 [0.39] /
ø 12 h7 [0.47]
ø 1/4“ h7 (L = 5/8“)
ø 3/8“ h7 (L = 5/8“)
ø 1/4“ h8 (L = 7/8“)
ø 3/8“ h8 (L = 7/8“) MIL-connector version
Clamping flange, ø 58 [2.28]
Flange type 7 and 8
1 M3, 6 [0.24] deep
> @ I I ' > @ ' > @ I '
/ /
/
D = ø 6 h7 [0.24] [ [
[
ø 8 h7 [0.32]
ø 10 f7 [0.39]
ø 12 h7 [0.47]
ø 1/4“ h7 (L = 5/8“)
ø 3/8“ h7 (L = 5/8“)
ø 1/4“ h8 (L = 7/8“)
ø 3/8“ h8 (L = 7/8“) MIL-connector version
Synchro flange, ø 58 [2.28]
Flange type A and B
1 M4, 6 [0.24] deep
PD[
> @
K '
/
D = ø 6 h7 [0.24] [
ø 8 h7 [0.32] PD[
ø 10 f7 [0.39]
ø 12 h7 [0.47]
ø 1/4“ h7 (L = 5/8“)
ø 3/8“ h7 (L = 5/8“)
ø 1/4“ h8 (L = 7/8“)
ø 3/8“ h8 (L = 7/8“) MIL-connector version
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 69
