Incremental encoders

Compact
plastic housing, optical 3700 / 3720 (shaft / hollow shaft) Push-Pull / RS422
www.HydroSanatSharif.com

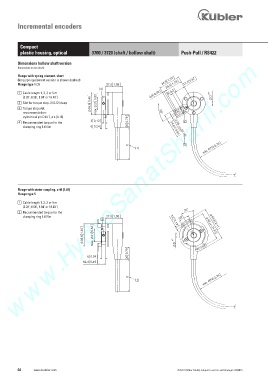

Dimensions hollow shaft version
Dimensions in mm [inch]

Flange with spring element, short
(long spring element version is shown dashed)
Flange type 1 (2)

1 Cable length 1, 2, 3 or 5 m ' +
[3.28‘, 6.56‘, 9.84‘ or 16.40‘]
2 Slot for torque stop, 3 [0.12] deep
3 Torque stop slot,
recommendation: PD[ ƒ
cylindrical pin DIN 7, ø 4 [0.16]

4 Recommended torque for the
clamping ring 1.0 Nm

> @
;
PLQ 5

Flange with stator coupling, ø 46 [1.81]
Flange type 5

1 Cable length 1, 2, 3 or 5 m
[3.28‘, 6.56‘, 9.84‘ or 16.40‘] ƒ
2 Recommended torque for the
clamping ring 1.0 Nm ƒ

“ > @

PD[ ' +

;
PLQ 5
