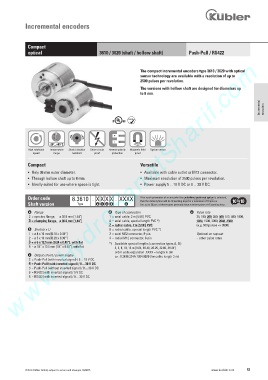

Page 59 - Keubler Motion Sensors

Incremental encoders

Compact
optical 3610 / 3620 (shaft / hollow shaft) Push-Pull / RS422
www.HydroSanatSharif.com

The compact incremental encoders type 3610 / 3620 with optical
sensor technology are available with a resolution of up to
2500 pulses per revolution.
The versions with hollow shaft are designed for diameters up
to 8 mm.

Incremental encoders

RoHS

-20°... +85°C
High rotational Temperature Shock / vibration Short-circuit Reverse polarity Magnetic field Optical sensor
speed range resistant proof protection proof

Compact Versatile
• Only 36 mm outer diameter. • Available with cable outlet or M12 connector.
• Through hollow shaft up to 8 mm. • Maximum resolution of 2500 pulses per revolution.
• Ideally suited for use where space is tight. • Power supply 5 ... 18 V DC or 8 ... 30 V DC.

Order code 8.3610 . X X X X . XXXX If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection e Pulse rate
2 = synchro flange, ø 36.5 mm [1.44“] 1 = axial cable, 2 m [5.56‘] PVC 25, 100, 200, 360, 500, 512, 600, 1000,
3 = clamping flange, ø 36.5 mm [1.44“] A = axial cable, special length PVC *) 1024, 1500, 2000, 2048, 2500
2 = radial cable, 2 m [5.56‘] PVC (e.g. 500 pulses => 0500)
b Shaft (ø x L) B = radial cable, special length PVC *)
1 = ø 4 x 10 mm [0.16 x 0.39“] 3 = axial M12 connector, 8-pin Optional on request
2 = ø 5 x 10 mm [0.20 x 0.39“] 4 = radial M12 connector, 8-pin - other pulse rates
3 = ø 6 x 12.5 mm [0.24 x 0.49“], with flat *) Available special lengths (connection types A, B):
5 = ø 1/4” x 12.5 mm [1/4” x 0.49“], with flat 3, 5, 8, 10, 15 m [9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
c Output circuit / power supply ex.: 8.3610.334A.1024.0030 (for cable length 3 m)
2 = Push-Pull (with inverted signal) / 5 ... 18 V DC
4 = Push-Pull (with inverted signal) / 8 ... 30 V DC
3 = Push-Pull (without inverted signal) / 8 ... 30 V DC
6 = RS422 (with inverted signal) / 5 V DC
5 = RS422 (with inverted signal) / 8 ... 30 V DC
