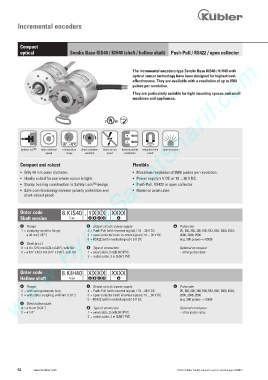

Page 56 - Keubler Motion Sensors

Incremental encoders

Compact
optical Sendix Base KIS40 / KIH40 (shaft / hollow shaft) Push-Pull / RS422 / open collector
www.HydroSanatSharif.com

The incremental encoders type Sendix Base KIS40 / KIH40 with
optical sensor technology have been designed for highest cost-
effectiveness. They are available with a resolution of up to 2500
pulses per revolution.
They are particularly suitable for tight mounting spaces and small
machines and appliances.

RoHS

-20°... +70°C
Safety-Lock TM High rotational Temperature Shock / vibration Short-circuit Reverse polarity Magnetic field Optical sensor
speed range resistant proof protection proof

Compact and robust Flexible
• Only 40 mm outer diameter. • Maximum resolution of 2500 pulses per revolution.
• Ideally suited for use where space is tight. • Power supply 5 V DC or 10 ... 30 V DC.
• Sturdy bearing construction in Safety Lock™ design. • Push-Pull, RS422 or open collector
• Safe commissioning: reverse polarity protection and • Radial or axial cable.
short-circuit proof.

Order code 8.KIS40 . 1 X X X . XXXX
Shaft version Type a b c d e
a Flange c Output circuit / power supply e Pulse rate
1 = clamping-synchro flange, 4 = Push-Pull (with inverted signal) / 10 ... 30 V DC 25, 100, 200, 360, 500, 512, 600, 1000, 1024,
ø 40 mm [1.57“] 3 = open collector (with inverted signal) / 10 ... 30 V DC 2000, 2048, 2500
6 = RS422 (with inverted signal) / 5 V DC (e.g. 500 pulses => 0500)
b Shaft (ø x L)
3 = ø 6 x 12.5 mm [0.24 x 0.49“], with flat d Type of connection Optional on request
5 = ø 1/4” x 12.5 mm [1/4” x 0.49“], with flat 1 = axial cable, 2 m [6.56‘] PVC - other pulse rates
2 = radial cable, 2 m [6.56‘] PVC

Order code 8.KIH40 . X X X X . XXXX
Hollow shaft Type a b c d e

a Flange c Output circuit / power supply e Pulse rate
2 = with spring element, long 4 = Push-Pull (with inverted signal) / 10 ... 30 V DC 25, 100, 200, 360, 500, 512, 600, 1000, 1024,
5 = with stator coupling, ø 46 mm [1.81“] 3 = open collector (with inverted signal) / 10 ... 30 V DC 2000, 2048, 2500
6 = RS422 (with inverted signal) / 5 V DC (e.g. 500 pulses => 0500)
b Blind hollow shaft
4 = ø 8 mm [0.32“] d Type of connection Optional on request
3 = ø 1/4“ 1 = axial cable, 2 m [6.56‘] PVC - other pulse rates
2 = radial cable, 2 m [6.56‘] PVC
