Accessories

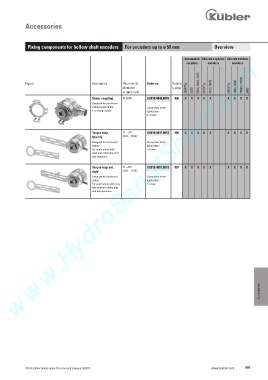

Fixing components for hollow shaft encoders For encoders up to ø 58 mm Overview

Incremental Absolute singleturn Absolute multiturn
www.HydroSanatSharif.com
encoders encoders encoders

Figure Description Pitch circle Order no. Details 5823, 5824, 5825 F5883, F5888
diameter s. page 5834FSx 5873FSx 5873, 5878 5883FSx 5883, 5888
in mm [inch] 5020 5882
Stator coupling 63 [2.48] 8.0010.4048.00FS 496 X X X X X X X X X
Designed for functional
safety thanks to the Connection to the
4-screw-principle. application:
4 screws

Torque stop, 77 ... 278 8.0010.4047.00FS 496 X X X X X X X X X
flexible [3.03 ... 10.94]
Designed for functional Connection to the
safety. application:
For applications with 1 screw
axial and radial play and
low dynamics.

Torque stop set, 71 ... 281 8.0010.4051.00FS 497 X X X X X X X X X
rigid [2.80 ... 11.06]
Designed for functional Connection to the
safety. application:
For applications with very 1 screw
low axial and radial play
and low dynamics.

Accessories

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 491
