Accessories

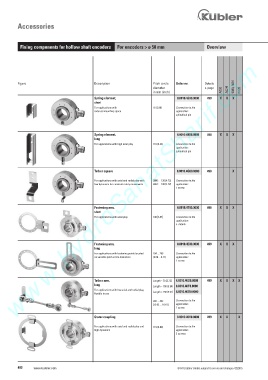

Fixing components for hollow shaft encoders For encoders > ø 58 mm Overview

www.HydroSanatSharif.com

Figure Description Pitch circle Order no. Details
diameter s. page 9080, 9081
in mm [inch] A020 A02H H120
Spring element, 8.0010.4J00.0000 498 X X X
short
For applications with 76 [2.99] Connection to the
reduced mounting space application:
cylindrical pin

Spring element, 8.0010.4K00.0000 498 X X X
long
For applications with high axial play 110 [4.33] Connection to the
application:
cylindrical pin

Tether square 8.0010.4G00.0000 498 X

For applications with axial and radial play with 9080: 120 [4.72] Connection to the
low dynamics for constant rotary movements 9081: 120 [4.72] application:
1 screw

Fastening arm, 8.0010.4T00.0000 498 X X X
short
For applications with axial play 149 [5.87] Connection to the
application:
s. details

Fastening arm, 8.0010.4E00.0000 499 X X X
long
For applications with fastening points located 104 ... 206 Connection to the
on variable pitch circle diameters [4.09 ... 8.11] application:
1 screw

Tether arm, Length = 70 [2.75] 8.0010.40S0.0000 499 X X X X
long
Length = 100 [3.94] 8.0010.40T0.0000
For applications with low axial and radial play,
flexible in use Length = 150 [5.91] 8.0010.40U0.0000
262 ... 422 Connection to the
[10.32 ... 16.61] application:
1 screw
Stator coupling 8.0010.40V0.0000 499 X X X

For applications with axial and radial play and 119 [4.69] Connection to the
high dynamics application:
2 screws
