Accessories

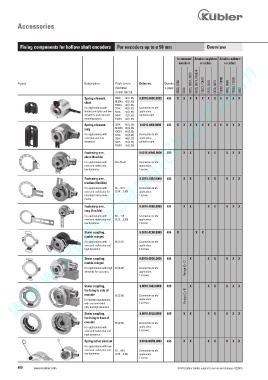

Fixing components for hollow shaft encoders For encoders up to ø 58 mm Overview

Incremental Absolute singleturn Absolute multiturn
www.HydroSanatSharif.com
encoders encoders encoders

Figure Description Pitch circle Order no. Details 5823, 5824, 5825 3670, 3671, M3678 F3673, F3678 F3683, F3688 F5883, F5888
diameter s. page 3620, 3720 5873, 5878 5870, 5872 5883, 5888
in mm [inch] 5020 5882
Spring element, 36XX 42 [1.65] 8.0010.4H00.0000 493 X X X X X X X X X X X
short M36XX 42 [1.65]
F36XX 42 [1.65]
For applications with 37XX 40 [1.57] Connection to the
limited axial play and low 50XX 42 [1.65] application:
dynamics, and reduced 58XX 42 [1.65] cylindrical pin
mounting space F58XX 42 [1.65]
Spring element, 36XX 60 [2.36] 8.0010.4I00.0000 493 X X X X X X X X X X X
long M36XX 60 [2.36]
F36XX 60 [2.36]
For applications with 37XX 63 [2.48] Connection to the
axial play and low 50XX 44 [1.73] application:
dynamics 58XX 65 [2.56] cylindrical pin
F58XX 65 [2.56]
Fastening arm, 8.0010.40M0.0000 493 X X X X X X X
short (flexible)
For applications with 64.5 [2.54] Connection to the
axial and radial play, application:
low dynamics 1 screw
Fastening arm, 8.0010.40E0.0000 493 X X X X X X X
medium (flexible)
For applications with 65 ... 91.5 Connection to the
axial and radial play for [2.56 ... 3.60] application:
constant rotary move- 1 screw
ments
Fastening arm, 8.0010.4R00.0000 494 X X X X X X X
long (flexible)
For applications with 80 ... 170 Connection to the
axial and radial play and [3.15 ... 6.69] application:
low dynamics 1 screw

Stator coupling, 8.0010.4C00.0000 494 X X X
double-winged
For applications with 46 [1.81] Connection to the
axial and radial play and application:
high dynamics 2 screws
Stator coupling, 8.0010.4D00.0000 494 X X X X X X
double-winged
For applications with high 63 [2.48] Connection to the flange C+ D
demands for accuracy application:
2 screws

Stator coupling, 8.0010.1602.0000 495 X X X X X X
for fixing to side of
encoder 65 [2.56] Connection to the flange C+ D
For standard applications application:
with axial and radial 3 screws
play, and high dynamics
Stator coupling, 8.0010.40L0.0000 495 X X X X X X X
for fixing to front of
encoder 65 [2.56] Connection to the
For applications with application:
axial and radial play and 3 screws
high dynamics
Spring tether element 8.0010.40W0.0000 495 X X X X X X X
For applications with low
axial and radial play and 42 ... 84.5 Connection to the
low dynamics [1.65 ... 3.33] application:
1 screw
490 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
