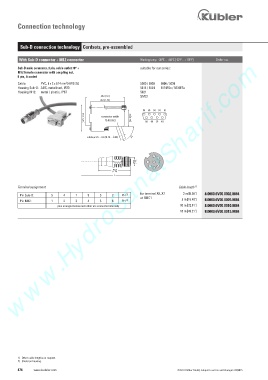

Connection technology

Sub-D connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With Sub-D connector + M12 connector Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Sub-D male connector, 9 pin, cable outlet 70° + suitable for our series:
M12 female connector with coupling nut,
8 pin, A coded
2
Cable: PVC, 6 x 2 x 0.14 mm [AWG 25] 5000 / 5020 5006 / 5026
Housing Sub-D: ABS, metallised, IP20 5814 / 5834 5814FSx / 5834FSx
Housing M12: metal / plastic, IP67 5821
SMC1

(5) (4) (3) (2) (1)
connector width

15.8 [0.62]
(9) (8) (7) (6)

cable ø 3.5 ... 8.6 [0.14 ... 0.34] ƒ
>.DEHO
.DEHO
@

2
3
1 8 4
7 5
6

Terminal assignment Cable length 1)
for terminal X6, X7 2 m [6.56‘] 8.0000.6V00.0002.0084
Pin Sub-D: 5 4 1 9 3 2 PH 2)
at SMC1 5 m [16.40‘]
Pin M12: 1 2 3 4 5 6 PH 2) 8.0000.6V00.0005.0084
pins arranged below each other are connected internally 10 m [32.81‘] 8.0000.6V00.0010.0084
15 m [49.21‘] 8.0000.6V00.0015.0084

1) Other cable lengths on request.
2) Shield on housing.
