Connection technology

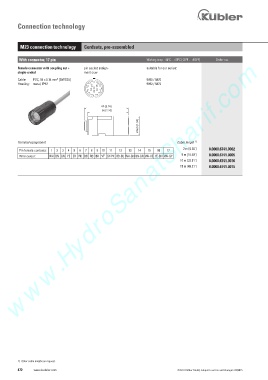

M23 connection technology Cordsets, pre-assembled
www.HydroSanatSharif.com
With connector, 17 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Female connector with coupling nut + pin socket assign- suitable for our series:
single-ended ment ccw
2
Cable: PVC, 18 x 0.14 mm [AWG25] 5850 / 5870
11
Housing: metal, IP67 1 10 5852 / 5872
12 16
2 17
13 15 8
14
3
7
4 6
5
60 [2.36]
56 [2.20]
ø26,5 [1.04]
Terminal assignment Cable length 1)
2 m [6.56‘] 8.0000.6741.0002
Pin female contacts: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
5 m [16.40‘] 8.0000.6741.0005
Wire colour: WH BN GN YE GY PK BU RD BK VT GY-PK RD-BU WH-GN BN-GN WH-YE YE-BN WH-GY
10 m [32.81‘] 8.0000.6741.0010
15 m [49.21‘] 8.0000.6741.0015
1) Other cable lengths on request.
