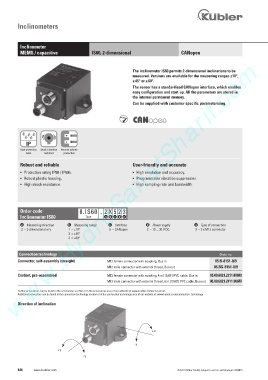

Inclinometers

Inclinometer
MEMS / capacitive IS60, 2-dimensional CANopen
www.HydroSanatSharif.com

The inclinometer IS60 permits 2-dimensional inclinations to be
measured. Versions are available for the measuring ranges ±10°,
± 45° or ± 60°.
The sensor has a standardised CANopen interface, which enables
easy configuration and start-up. All the parameters are stored in
the internal permanent memory.
Can be supplied with customer-specific parameterising.

RoHS

IP
High protection Shock / vibration Reverse polarity
level resistant protection

Robust and reliable User-friendly and accurate
• Protection rating IP68 / IP69k. • High resolution and accuracy.
• Robust plastic housing. • Programmable vibration suppression.
• High shock resistance. • High sampling rate and bandwidth.

Order code 8.IS60 . 2 X 5 2 3
Inclinometer IS60 Type a b c d e
a Measuring direction b Measuring range c Interface d Power supply e Type of connection
2 = 2-dimensional x / y 1 = ±10° 5 = CANopen 2 = 10 ... 30 V DC 3 = 2 x M12 connector
2 = ±45°
3 = ±60°

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling, Bus in 05.B-8151-0/9
M12 male connector with external thread, Bus out 05.BS-8151-0/9

Cordset, pre-assembled M12 female connector with coupling, 6 m [19.69‘] PVC cable, Bus in 05.00.6021.2211.006M
M12 male connector with external thread, 6 m [19.69‘] PVC cable, Bus out 05.00.6021.2411.006M

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology

Direction of inclination

+ x

- x
+ y
- y

444 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
