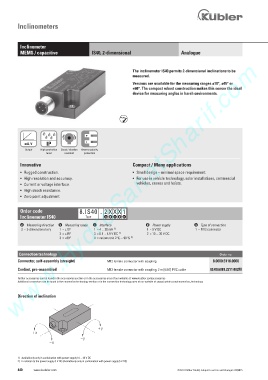

Inclinometers

Inclinometer
MEMS / capacitive IS40, 2-dimensional Analogue
www.HydroSanatSharif.com

The inclinometer IS40 permits 2-dimensional inclinations to be
measured.

Versions are available for the measuring ranges ±10°, ±45° or
±60°. The compact robust construction makes this sensor the ideal
device for measuring angles in harsh environments.

RoHS

mA, V IP
Output High protection Shock / vibration Reverse polarity
level resistant protection

Innovative Compact / Many applications
• Rugged construction. • Small design – minimal space requirement.
• High resolution and accuracy. • For use in vehicle technology, solar installations, commercial
• Current or voltage interface. vehicles, cranes and hoists.
• High shock resistance.
• Zero point adjustment.

Order code 8.IS40 . 2 X X X 1
Inclinometer IS40 Type a b c d e
a Measuring direction b Measuring range c Interface d Power supply e Type of connection
2 = 2-dimensional x / y 1 = ±10° 1 = 4 ... 20 mA 1) 1 = 5 V DC 1 = M12 connector
2 = ±45° 3 = 0.1 ... 4.9 V DC 1) 2 = 10 ... 30 V DC
3 = ±60° 4 = ratiometric 2 % ... 98 % 2)

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling 8.0000.5116.0000
Cordset, pre-assembled M12 female connector with coupling, 2 m [6.56‘] PVC cable 05.00.6081.2211.002M

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology

Direction of inclination

1) Availablenly only in combination with power supply 10 ... 30 V DC
2) In relation to the power supply 5 V DC (Availablenly only in combination with power supply 5 V DC)
