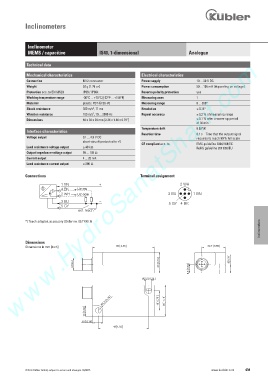

Inclinometers

Inclinometer
MEMS / capacitive IS40, 1-dimensional Analogue
www.HydroSanatSharif.com
Technical data
Mechanical characteristics Electrical characteristics
Connection M12 connector Power supply 10 ... 30 V DC
Weight 50 g [1.76 oz] Power consumption 50 ... 105 mA (depending on voltage)
Protection acc. to EN 60529 IP68 / IP69k Reverse polarity protection yes
Working temperature range -30°C ... +70°C [-22°F ... +158°F] Measuring axes 1
Material plastic PBT-GF20-V0 Measuring range 0 ... 360°
2
Shock resistance 300 m/s , 11 ms Resolution ) 0.14°
2
Vibration resistance 100 m/s , 10 ... 2000 Hz Repeat accuracy ) 0.2 % of measuring range
Dimensions 60 x 30 x 20 mm [2.36 x 1.18 x 0.79“] ) 0.1 % after a warm-up period
of 30 min
Temperature drift 0.03°/K
Interface characteristics
Reaction time 0.1 s – Time that the output signal
Voltage output 0.1 ... 4.9 V DC requires to reach 90 % full scale
short-circuit protected to +V
CE compliant acc. to EMC guideline 2004/108/EC
Load resistance voltage output * 40 k1 RoHS guideline 2011/65/EU
Output impedance voltage output 99 ... 105 1
Current output 4 ... 20 mA
Load resistance current output ) 200 1

Connections Terminal assignment

Uz cw
Uz ccw

*

Inclinometers
*) Teach adapter, accessory (Order no. 05.TX40.1)

Dimensions
Dimensions in mm [inch] [

0

[

0

5

5
