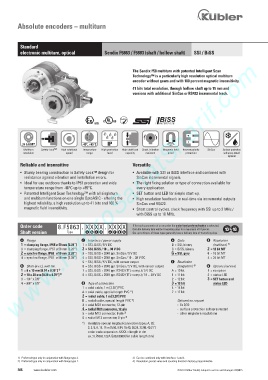

Page 308 - Keubler Motion Sensors

Absolute encoders – multiturn

Standard
electronic multiturn, optical Sendix F5863 / F5883 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com

The Sendix F58 multiturn with patented Intelligent Scan
Technology™ is a particularly high resolution optical multiturn
encoder without gears and with 100 percent magnetic insensitivity.
41 bits total resolution, through hollow shaft up to 15 mm and
versions with additional SinCos or RS422 incremental track.

RoHS
2/22

24 bit MT -40°... +85°C IP
Multiturn Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity SinCos Surface protection
resolution speed range level capacity resistant proof protection salt spray-tested
optional
Reliable and insensitive Versatile
• Sturdy bearing construction in Safety-Lock™ design for • Available with SSI or BiSS interface and combined with
resistance against vibration and installation errors. SinCos incremental signals.
• Ideal for use outdoors thanks to IP67 protection and wide • The right fixing solution or type of connection available for
temperature range from -40°C up to +85°C. every application.
• Patented Intelligent Scan Technology™ with all singleturn • SET button and LED for simple start-up.
and multiturn functions on one single OptoASIC - offering the • High resolution feedback in real-time via incremental outputs
highest reliability, a high resolution up to 41 bits and 100 % SinCos and RS422.
magnetic field insensitivity. • Short control cycles, clock frequency with SSI up to 2 MHz /
with BiSS up to 10 MHz.

Order code 8.F5863 . X X X X . X X X X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f g h Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Code g Resolution

1 = clamping flange, IP65 ø 58 mm [2.28“] 1 = SSI, BiSS / 5 V DC B = SSI, binary (multiturn) 4)
3 = clamping flange, IP67 ø 58 mm [2.28“] 2 = SSI, BiSS / 10 ... 30 V DC C = BiSS, binary 2 = 12 bit MT
2 = synchro flange, IP65 ø 58 mm [2.28“] 3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC G = SSI, gray 6 = 16 bit MT
4 = synchro flange, IP67 ø 58 mm [2.28“] 4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC 4 = 24 bit MT
5 = SSI, BiSS / 5 V DC, with sensor output f Resolution
b Shaft (ø x L), with flat 6 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC, with sensor output (singleturn) 4) h Options (service)
1 = 6 x 10 mm [0.24 x 0.39“] 1) 7 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 5 V DC A = 10 bit 1 = no option
2 = 10 x 20 mm [0.39 x 0.79“] 2) 8 = SSI, BiSS + 2048 ppr. RS422 (TTL-comp.) / 10 ... 30 V DC 1 = 11 bit 2 = status LED
3 = 1/4“ x 7/8“ 2 = 12 bit 3 = SET button and
4 = 3/8“ x 7/8“ d Type of connection 3 = 13 bit status LED
1 = axial cable, 1 m [3.28‘] PVC 4 = 14 bit
A = axial cable, special length PVC *) 7 = 17 bit
2 = radial cable, 1 m [3.28‘] PVC
B = radial cable, special length PVC *) Optional on request
3 = axial M23 connector, 12-pin - Ex 2/22
4 = radial M23 connector, 12-pin - surface protection salt spray tested
5 = axial M12 connector, 8-pin 3) - other singleturn resolutions
6 = radial M12 connector, 8-pin 3)
*) Available special lengths (connection types A, B):
2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.F5863.122A.G323.0030 (for cable length 3 m)

1) Preferred type only in conjunction with flange type 2. 3) Can be combined only with interface 1 and 2.
2) Preferred type only in conjunction with flange type 1. 4) Resolution, preset value and counting direction factory-programmable.
