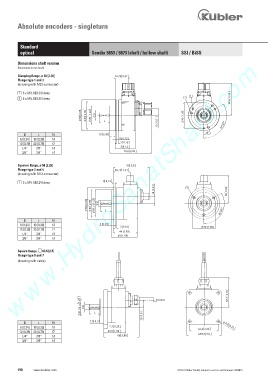

Page 192 - Keubler Motion Sensors

Absolute encoders - singleturn

Standard
optical Sendix 5853 / 5873 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com
Dimensions shaft version
Dimensions in mm [inch]

Clamping flange, ø 58 [2.28]
Flange type 1 and 3
(drawing with M23 connector)
1 3 x M3, 6 [0.24] deep

2 3 x M4, 8 [0.32] deep

' '

/ /
[ ƒ [ ƒ
ƒ ƒ
D L Fit
6 [0.24] 10 [0.39] h7
10 [0.39] 20 [0.79] f7
1/4“ 7/8“ h7
3/8“ 7/8“ h7

Synchro flange, ø 58 [2.28]
Flange type 2 and 4
(drawing with M12 connector)
1 3 x M4, 6 [0.24] deep
> @

> @ > @ K ' / [ ƒ

D L Fit
6 [0.24] 10 [0.39] h7 > @ > @ > @
10 [0.39] 20 [0.79] f7 > @
1/4“ 7/8“ h7 > @
3/8“ 7/8“ h7

Square flange, 63.5 [2.5]
Flange type 5 and 7
(drawing with cable)

K 1 25

' /

D L Fit
6 [0.24] 10 [0.39] h7
10 [0.39] 20 [0.79] f7
1/4“ 7/8“ h7
3/8“ 7/8“ h7

190 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
