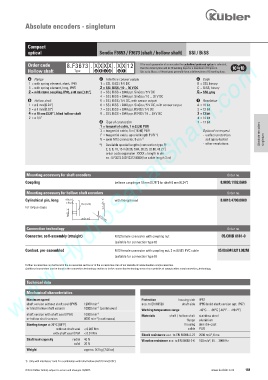

Absolute encoders - singleturn

Compact
optical Sendix F3653 / F3673 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com
Order code 8.F3673 . X X X X . X X 1 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Code
1 = with spring element, short, IP65 1 = SSI, BiSS / 5 V DC B = SSI, binary
3 = with spring element, long, IP65 2 = SSI, BiSS / 10 ... 30 V DC C = BiSS, binary
2 = with stator coupling, IP65, ø 46 mm [1.81“] 3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC G = SSI, gray
4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC
b Hollow shaft 5 = SSI, BiSS / 5 V DC, with sensor output f Resolution
1 = ø 6 mm [0.24“] 6 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC, with sensor output A = 10 bit
3 = ø 8 mm [0.32“] 7 = SSI, BiSS + 2048 ppr. RS422 / 5 V DC 2 = 12 bit
4 = ø 10 mm [0.39“], blind hollow shaft 8 = SSI, BiSS + 2048 ppr. RS422 / 10 ... 30 V DC 3 = 13 bit
2 = ø 1/4” 4 = 14 bit
d Type of connection 7 = 17 bit
1 = tangential cable, 1 m [3.28] PUR
3 = tangential cable, 5 m [16.40] PUR Optional on request
F = tangential cable, special length PUR *) - surface protection Absolute encoders
8 = axial M12 connector, 8-pin 1) salt spray tested singleturn
*) Available special lengths (connection type F): - other resolutions
2, 3, 8, 10, 15 m [6.56, 9.84, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.F3673.242F.G312.0030 (for cable length 3 m)

Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long with fixing thread 8.0010.4700.0000

6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling nut 05.CMB 8181-0
(suitable for connection type 8)

Cordset, pre-assembled M12 female connector with coupling nut, 2 m [6.56‘] PVC cable 05.00.6041.8211.002M
(suitable for connection type 8)

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data

Mechanical characteristics
Maximum speed Protection housing side IP67
shaft version without shaft seal (IP65) 12000 min -1 acc. to EN 60529 shaft side IP65 (solid shaft version opt. IP67)
-1
or blind hollow shaft version 10000 min (continuous)
Working temperature range -40°C ... +90°C [-40°F ... +194°F]
shaft version with shaft seal (IP67) 10000 min -1 Materials shaft / hollow shaft stainless steel
-1
or hollow shaft version 8000 min (continuous) flange aluminium
Starting torque at 20°C [68°F] housing zinc die-cast
without shaft seal < 0.007 Nm cable PUR
with shaft seal (IP67 < 0.01 Nm Shock resistance acc. to EN 60068-2-27 2500 m/s , 6 ms
2
Shaft load capacity radial 40 N Vibration resistance acc. to EN 60068-2-6 100 m/s , 55 ... 2000 Hz
2
axial 20 N
Weight approx. 0.2 kg [7.06 oz]
1) Only with interfaces 1 and 2 in combination with blind hollow shaft 10 mm [0.39“].
