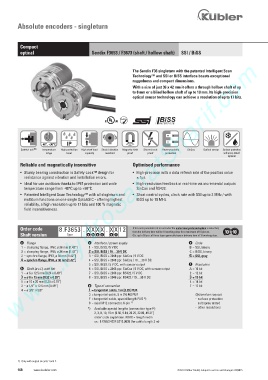

Absolute encoders - singleturn

Compact
optical Sendix F3653 / F3673 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com

The Sendix F36 singleturn with the patented Intelligent Scan
Technology™ and SSI or BiSS interface boasts exceptional
ruggedness and compact dimensions.
With a size of just 36 x 42 mm it offers a through hollow shaft of up
to 8 mm or a blind hollow shaft of up to 10 mm. Its high-precision
optical sensor technology can achieve a resolution of up to 17 bits.

RoHS

-40°... +90°C IP
Safety-Lock TM Temperature High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity SinCos Optical sensor Surface protection
range level capacity resistant proof proof protection salt spray-tested
optional
Reliable and magnetically insensitive Optimised performance
• Sturdy bearing construction in Safety-Lock™ design for • High-precision with a data refresh rate of the position value
resistance against vibration and installation errors. ) 1µs.
• Ideal for use outdoors thanks to IP67 protection and wide • High-resolution feedback in real-time via incremental outputs
temperature range from -40°C up to +90°C. SinCos and RS422.
• Patented Intelligent Scan Technology™ with all singleturn and • Short control cycles, clock rate with SSI up to 2 MHz / with
multiturn functions on one single OptoASIC - offering highest BiSS up to 10 MHz.
reliability, a high resolution up to 17 bits and 100 % magnetic
field insensitiveness.

Order code 8.F3653 . X X X X . X X 1 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Code
1 = clamping flange, IP67, ø 36 mm [1.42“] 1 = SSI, BiSS / 5 V DC B = SSI, binary
3 = clamping flange, IP65, ø 36 mm [1.42“] 2 = SSI, BiSS / 10 ... 30 V DC C = BiSS, binary
2 = synchro flange, IP67, ø 36 mm [1.42“] 3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC G = SSI, gray
4 = synchro flange, IP65, ø 36 mm [1.42“] 4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC
5 = SSI, BiSS / 5 V DC, with sensor output f Resolution
b Shaft (ø x L), with flat 6 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC, with sensor output A = 10 bit
1 = ø 6 x 12.5 mm [0.24 x 0.49“] 7 = SSI, BiSS + 2048 ppr. RS422 / 5 V DC 2 = 12 bit
3 = ø 8 x 15 mm [0.32 x 0.59“] 8 = SSI, BiSS + 2048 ppr. RS422 / 10 ... 30 V DC 3 = 13 bit
5 = ø 10 x 20 mm [0.39 x 0.79“] 4 = 14 bit
2 = ø 1/4” x 12.5 mm [0.49“] d Type of connection 7 = 17 bit
4 = ø 3/8” x 5/8“ 1 = tangential cable, 1 m [3.28] PUR
3 = tangential cable, 5 m [16.40] PUR Optional on request
F = tangential cable, special length PUR *) - surface protection
8 = axial M12 connector, 8-pin 1) salt spray tested
*) Available special lengths (connection type F): - other resolutions
2, 3, 8, 10, 15 m [6.56, 9.84, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.F3653.432F.G312.0030 (for cable length 3 m)

1) Only with output circuits 1 and 2.
