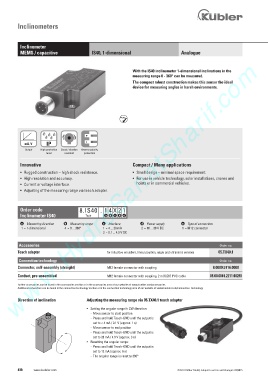

Inclinometers

Inclinometer
MEMS / capacitive IS40, 1-dimensional Analogue
www.HydroSanatSharif.com

With the IS40 inclinometer 1-dimensional inclinations in the
measuring range 0 - 360° can be measured.
The compact robust construction makes this sensor the ideal
device for measuring angles in harsh environments.

RoHS

mA, V IP
Output High protection Shock / vibration Reverse polarity
level resistant protection

Innovative Compact / Many applications
• Rugged construction – high shock resistance. • Small design – minimal space requirement.
• High resolution and accuracy. • For use in vehicle technology, solar installations, cranes and
• Current or voltage interface. hoists or in commercial vehicles.
• Adjusting of the measuring range via teach adapter.

Order code 8.IS40 . 1 4 X 2 1
Inclinometer IS40 Type a b c d e

a Measuring direction b Measuring range c Interface d Power supply e Type of connection
1 = 1-dimensional 4 = 0 ... 360° 1 = 4 ... 20 mA 2 = 10 ... 30 V DC 1 = M12 connector
3 = 0.1 ... 4.9 V DC

Accessories Order no.
Teach adapter for inductive encoders, linear position, angle and ultrasonic sensors 05.TX40.1

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling 8.0000.5116.0000
Cordset, pre-assembled M12 female connector with coupling, 2 m [6.56‘] PVC cable 05.00.6081.2211.002M
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology

Direction of inclination Adjusting the measuring range via 05.TX40.1 teach adapter
• Setting the angular range in CW direction:
- Move sensor to start position "
- Press and hold Teach-GND until the output is
set to < 4 mA / 0.1 V (approx. 1 s)
- Move sensor to end position
- Press and hold Teach-GND until the output is
set to 20 mA / 4.9 V (approx. 3 s)
• Resetting the angular range: "
- Press and hold Teach-GND until the output is
set to 12 mA (approx. 6 s) "
- The angular range is reset to 360°

438 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
