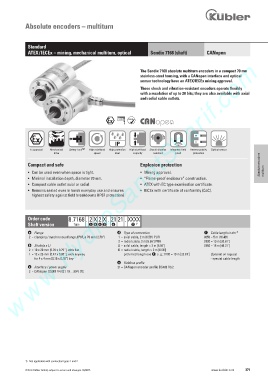

Absolute encoders – multiturn




             Standard
             ATEX / IECEx – mining, mechanical multiturn, optical   Sendix 7168 (shaft)      CANopen
        www.HydroSanatSharif.com

                                                               The Sendix 7168 absolute multiturn encoders in a compact 70 mm
                                                               stainless-steel housing, with a CANopen interface and optical
                                                               sensor technology have an ATEX/IECEx mining approval.
                                                               These shock and vibration-resistant encoders operate flexibly
                                                               with a resolution of up to 28 bits; they are also available with axial
                                                               and radial cable outlets.




                                                          RoHS
                                                          RoHS



                                                    IP
              Ex approval  Mechanical   Safety-Lock TM  High rotational   High protection   High shaft load   Shock / vibration  Magnetic field  Reverse polarity  Optical sensor
                         drive             speed    level   capacity  resistant  proof  protection

             Compact and safe                                  Explosion protection                                 Absolute encoders
             •   Can be used even when space is tight.         •  Mining approval.                                    multiturn
             •   Minimal installation depth, diameter 70 mm.   •  “Flame-proof enclosure” construction.
             •   Compact cable outlet axial or radial.         •  ATEX with EC type examination certificate.
             •   Remains sealed even in harsh everyday use and ensures   •  IECEx with certificate of conformity (CoC).
               highest safety against field breakdowns (IP67 protection).





             Order code        8.7168 . 2 X 2 X . 21 21  .  XXXX
             Shaft version        Type   a b c d   e        f  1)
              a     Flange                            d     Type of connection              f     Cable length in dm  1)
              2  = clamping / synchronous flange, IP67, ø 70 mm [2.76“]   1  =  axial cable, 2 m [6.56‘] PUR    0050 = 5 m [16.40‘]
                                                      2  =  radial cable, 2 m [6.56‘] PUR     0100 = 10 m [32.81‘]
              b     Shaft (ø x L)                     A  =  axial cable, length > 2 m [6.56‘]    0150 = 15 m [49.21‘]
              2  =  10 x 20 mm [0.39 x 0.79“], with flat   B  =  radial cable, length > 2 m [6.56‘]
              1  =  12 x 25 mm [0.47 x 0.98“], with keyway                preferred length see  f , e. g.: 0100 = 10 m [32.81‘]        Optional on request
                   for 4 x 4 mm [0.16 x 0.16“] key                                                - special cable length
                                                      e     Fieldbus profile
              c     Interface / power supply          21 =  CANopen encoder profile DS406 V3.2
              2  =  CANopen DS301 V4.02 / 10 ... 30 V DC























            1)   Not applicable with connection types 1 and 2.
