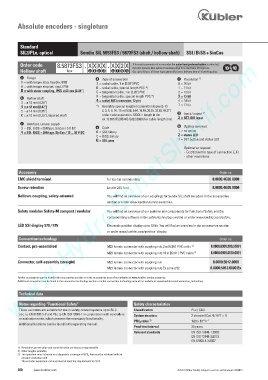

Absolute encoders - singleturn

Standard
SIL3/PLe, optical Sendix SIL 5853FS3 / 5873FS3 (shaft / hollow shaft) SSI / BiSS + SinCos
www.HydroSanatSharif.com
Order code 8.5873FS3 . X X X X . X X 2 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e f g h Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange
d Type of connection f Resolution 1)
9 = with torque stop, flexible, IP65 2 = radial cable, 1 m [3.28‘] PVC A = 10 bit
A = with torque stop set, rigid, IP65 B = radial cable, special length PVC *) 1 = 11 bit
B = with stator coupling, IP65, ø 63 mm [2.48“] E = tangential cable, 1 m [3.28‘] PVC 2 = 12 bit
F = tangential cable, special length PVC *) 3 = 13 bit
b Hollow shaft
3 = ø 10 mm [0.39“] 4 = radial M23 connector, 12 pin 4 = 14 bit
4 = ø 12 mm [0.47“] *) Available special lengths (connection types B, F): 7 = 17 bit
5 = ø 14 mm [0.55“] 2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] g Input / output 1)
K = ø 10 mm [0.39“], tapered shaft order code expansion .XXXX = length in dm
ex.: 8.5873FS3.B44B.G322.0030 (for cable length 3 m) 2 = SET, DIR input
c Interface / power supply
h Options (service)
3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC e Code
4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC B = SSI, binary 1 = no option
C = BiSS, binary 2 = status LED
G = SSI, gray 3 = SET button and status LED
Optional on request
- Ex 2/22 (not for type of connection E, F)
- other resolutions

Accessory Order no.
EMC shield terminal for top-hat rail mounting 8.0000.4G06.0000

Screw retention Loctite 243, 5 ml 8.0000.4G05.0000
Bellows coupling, safety-oriented You will find an overview of our couplings for Sendix SIL shaft encoders in the accessories
section or under www.kuebler.com/accessories.

Safety modules Safety-M compact / modular You will find an overview of our systems and components for Functional Safety and the
corresponding software in the safety technology section or under www.kuebler.com/safety.
LED SSI display 570 / 575 Electronic position display up to 32 bit. You will find an overview in the accessories section
or under www.kuebler.com/position_display.
Connection technology Order no.
2)
Cordset, pre-assembled M23 female connector with coupling nut, 2 m [6.56‘] PVC cable 8.0000.6901.0002.0031
2)
M23 female connector with coupling nut, 10 m [32.81‘] PVC cable 8.0000.6901.0010.0031

Connector, self-assembly (straight) M23 female connector with coupling nut 8.0000.5012.0000
M23 female connector with coupling nut, Ex zone 2/22 8.0000.5012.0000.Ex

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data

Notes regarding “Functional Safety” Safety characteristics
These encoders are suitable for use in safety-related systems up to SIL3 Classification PLe / SIL3
acc. to EN 61800-5-2 and PLe to EN ISO 13849-1 in conjunction with controllers System structure 2 channel (Cat. 4 / HFT = 1)
or evaluation units, which possess the necessary functionality.
-8
PFH d value 3) 1.09 x 10 h -1
Additional functions can be found in the operating manual.
Proof-test interval 20 years
Relevant standards EN ISO 13849-1:2008;
EN ISO 13849-2:2013;
EN 61800-5-2:2007
1) Resolution, preset value and count direction are factory-programmable.
2) Other lengths available.
3) The specified value is based on a diagnostic coverage of 99 %, that must be achieved with an
encoder evaluation unit.
The encoder evaluation unit must meet at least the requirements for SIL3.
