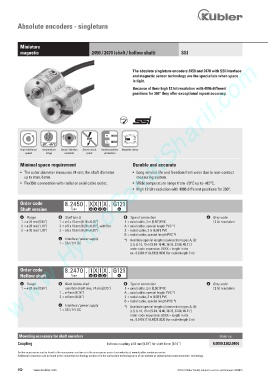

Absolute encoders - singleturn

Miniature
magnetic 2450 / 2470 (shaft / hollow shaft) SSI
www.HydroSanatSharif.com

The absolute singleturn encoders 2450 and 2470 with SSI interface
and magnetic sensor technology are the specialists when space
is tight.
Because of their high 12 bit resolution with 4096 different
positions for 360° they offer exceptional repeat accuracy.

RoHS
RoHS

-20°... +85°C
High rotational Temperature Shock / vibration Short-circuit Reverse polarity Magnetic sensor
speed range resistant proof protection

Minimal space requirement Durable and accurate
• The outer diameter measures 24 mm; the shaft diameter • Long service life and freedom from wear due to non-contact
up to max. 6 mm. measuring system.
• Flexible connection with radial or axial cable outlet. • Wide temperature range from -20°C up to +85°C.
• High 12 bit resolution with 4096 different positions for 360°.

Order code 8.2450 . X X 1 X . G121
Shaft version Type a b c d e

a Flange b Shaft (ø x L) d Type of connection e Gray-code
1 = ø 24 mm [0.94“] 1 = ø 4 x 10 mm [0.16 x 0.39“] 1 = axial cable, 2 m [6.56‘] PVC 12 bit resolution
3 = ø 28 mm [1.10“] 3 = ø 5 x 10 mm [0.20 x 0.39“], with flat A = axial cable, special length PVC *)
2 = ø 30 mm [1.18“] 2 = ø 6 x 10 mm [0.24 x 0.39“] 2 = radial cable, 2 m [6.56‘] PVC
B = radial cable, special length PVC *)
c Interface / power supply *) Available special lengths (connection types A, B):
1 = SSI / 5 V DC 3, 5, 8, 10, 15 m [9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.2450.111A.G121.0030 (for cable length 3 m)

Order code 8.2470 . 1 X 1 X . G121
Hollow shaft Type a b c d e
a Flange b Blind hollow shaft d Type of connection e Gray-code
1 = ø 24 mm [0.94“] insertion depth max. 14 mm [0.55“] 1 = axial cable, 2 m [6.56‘] PVC 12 bit resolution
1 = ø 4 mm [0.16“] A = axial cable, special length PVC *)
2 = ø 6 mm [0.24“] 2 = radial cable, 2 m [6.56‘] PVC
B = radial cable, special length PVC *)
c Interface / power supply *) Available special lengths (connection types A, B):
1 = SSI / 5 V DC 3, 5, 8, 10, 15 m [9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.2470.111A.G121.0030 (for cable length 3 m)

Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 15 mm [0.59“] for shaft 4 mm [0.16“] 8.0000.1202.0404
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.
