P. 150
Incremental encoders
Bearingless
zero pulse, magnetic RI50 / Limes LI50 (hollow shaft) Push-Pull / RS422
www.HydroSanatSharif.com

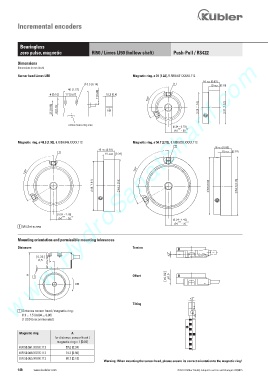

Dimensions
Dimensions in mm [inch]
Sensor head Limes LI50 Magnetic ring, ø 31 [1.22], 8.RI50.031.XXXX.112
16 ±0,3 [0.63]
3.5 [0.14] 1 10 ±0,2 [0.39]
40 [1.57]
[0.28]
4 [0.16] 17 [0.67] 10,2 [0.4]
7 120°
25 [0.98] 4 [0.16] 29 [1.14] [1.22] 31
active measuring area [0.24 - 0.79]
1
H7 H7
6 - 20
Magnetic ring, ø 48.3 [1.90], 8.RI50.048.XXXX.112 Magnetic ring, ø 54.7 [2.15], 8.RI50.055.XXXX.112
> > @@
16 ±0,3 [0.63]
1 > @ > @
10 ±0,20 [0.39]
120°
[1.81] [1.9] > @ > @ > @ > @
46 48,3
[0.24 - 1.18]
H7 H7
6 - 30 > > @@
+ + + +
1 M4 Set screw
Mounting orientation and permissible mounting tolerances
Distances Torsion
3°
0,33
8,5
A Offset
1 ±0,02 ±0,5
cw
3°
Tilting
1 Distance sensor head / magnetic ring:
0.1 ... 1.5 [0.004 ... 0.06]
(1 [0.04] recommended)
Magnetic ring A
for distance sensor head /
magnetic ring = 1 [0.04]
8.RI50.031.XXXX.112 57.0 [2.24]
8.RI50.048.XXXX.112 74.3 [2.93]
8.RI50.055.XXXX.112 80.7 [3.18]
Warning: When mounting the sensor head, please ensure its correct orientation to the magnetic ring!
