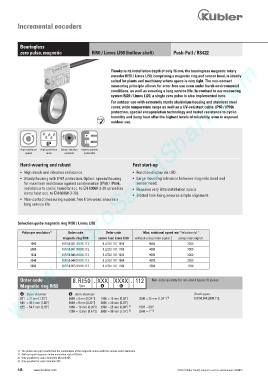

Incremental encoders

Bearingless
zero pulse, magnetic RI50 / Limes LI50 (hollow shaft) Push-Pull / RS422
www.HydroSanatSharif.com

Thanks to its installation depth of only 16 mm, the bearingless magnetic rotary
encoder RI50 / Limes LI50, comprising a magnetic ring and sensor head, is ideally
suited for plants and machinery where space is very tight. The non-contact
measuring principle allows for error-free use even under harsh environmental
conditions, as well as ensuring a long service life. In contrast to our measuring
system RI20 / Limes LI20, a single zero pulse is also implemented here.
For outdoor use with extremely sturdy aluminium housing and stainless steel
cover, wide temperature range as well as a UV-resistant cable. IP68 / IP69k
protection, special encapsulation technology and tested resistance to cyclic
humidity and damp heat offer the highest levels of reliability, even in exposed
RoHS
outdoor use.

IP
High rotational High protection Shock / vibration Reverse polarity
speed level resistant protection

Hard-wearing and robust Fast start-up
• High shock and vibration resistance. • Function display via LED.
• Sturdy housing with IP67 protection. Option: special housing • Large mounting tolerance between magnetic band and
for maximum resistance against condensation (IP68 / IP69k, sensor head.
resistance to cyclic humidity acc. to EN 60068-3-38 as well as • Requires very little installation space.
damp heat acc. to EN 60068-3-78). • Slotted hole fixing ensures simple alignment.
• Non-contact measuring system, free from wear, ensures a
long service life.

Selection guide magnetic ring RI50 / Limes LI50

1)
-1
Pulse per revolution Order code Order code Max. rotational speed min (electronic) 2
magnetic ring RI50 sensor head Limes LI50 without using index signal using index signal
1000 8.RI50.031.XXXX.112 8.LI50.11X1.1050 9000 3000
2000 8.RI50.031.XXXX.112 8.LI50.11X1.1100 4000 3000
1024 8.RI50.048.XXXX.112 8.LI50.11X1.1032 9000 2000
2048 8.RI50.048.XXXX.112 8.LI50.11X1.1064 4000 2000
3600 8.RI50.055.XXXX.112 8.LI50.11X1.1100 2500 1700

Order code 8.RI50 . XXX . XXXX . 112 Min. order quantity for non-stock types: 10 pieces
Magnetic ring RI50 Type a b
a Outer diameter b Bore diameter Stock types
031 = 31 mm [1.22“] 0600 = 6 mm [0.24“] 1500 = 15 mm [0.59“] 3500 = 35 mm [1.34“] 4) 8.RI50.048.2000.112
048 = 48.3 mm [1.90“] 0800 = 8 mm [0.32“] 2000 = 20 mm [0.79“]
3)
055 = 54.7 mm [2.15“] 1000 = 10 mm [0.39“] 2500 = 25 mm [0.98“] 1587 = 5/8“
1200 = 12 mm [0.47“] 3000 = 30 mm [1.18“] 3) 2540 = 1“ 3)

1) The pulse rate (ppr) results from the combination of the magnetic sensor with the various outer diameters.
2) With an input frequency of the evaluation unit of 250 kHz.
3) Only possible for outer diameters 048 and 055.
4) Only possible for outer diameter 055.
