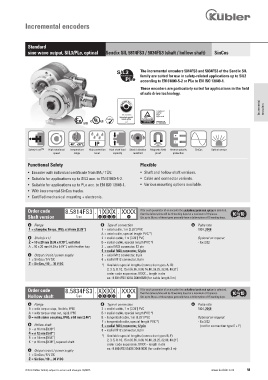

Incremental encoders

Standard
sine wave output, SIL3/PLe, optical฀ Sendix SIL 5814FS3 / 5834FS3 (shaft / hollow shaft) SinCos
www.HydroSanatSharif.com

The incremental encoders 5814FS3 and 5834FS3 of the Sendix SIL
family are suited for use in safety-related applications up to SIL3
according to EN 61800-5-2 or PLe to EN ISO 13849-1.
These encoders are particularly suited for applications in the field
of safe drive technology.

Incremental encoders

RoHS
2/22

-40°... +90°C IP
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity SinCos Optical sensor
speed range level capacity resistant proof protection

Functional Safety Flexible
• Encoder with individual certificate from IFA / TÜV. • Shaft and hollow shaft versions.
• Suitable for applications up to SIL3 acc. to EN 61800-5-2. • Cable and connector variants.
• Suitable for applications up to PLe acc. to EN ISO 13849-1. • Various mounting options available.
• With incremental SinCos tracks.
• Certified mechanical mounting + electronic.

Order code 8.5814FS3 . 1 X X X . XXXX If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection e Pulse rate
1 = clamping flange, IP65, ø 58 mm [2.28“] 1 = axial cable, 1 m [3.28‘] PVC 1024, 2048
A = axial cable, special length PVC *)
b Shaft (ø x L) 2 = radial cable, 1 m [3.28‘] PVC Optional on request
2 = 10 x 20 mm [0.39 x 0.79“], with flat B = radial cable, special length PVC *) - Ex 2/22
A = 10 x 20 mm [0.39 x 0.79“], with feather key 3 = axial M23 connector, 12 pin
4 = radial M23 connector, 12 pin
c Output circuit / power supply 5 = axial M12 connector, 8 pin
1 = SinCos / 5 V DC 6 = radial M12 connector, 8 pin
2 = SinCos / 10 ... 30 V DC *) Available special lengths (connection types A, B):
2, 3, 5, 8, 10, 15 m [6.56, 9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.5814FS3.122A.2048.0030 (for cable length 3 m)

Order code 8.5834FS3 . X X X X . XXXX If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection e Pulse rate
9 = with torque stop, flexible, IP65 2 = radial cable, 1 m [3.28‘] PVC 1024, 2048
A = with torque stop set, rigid, IP65 B = radial cable, special length PVC *)
B = with stator coupling, IP65, ø 63 mm [2.48“] E = tangential cable, 1 m [3.28‘] PVC Optional on request
F = tangential cable, special length PVC *) - Ex 2/22
b Hollow shaft
4 = radial M23 connector, 12 pin (not for connection type E + F)
3 = ø 10 mm [0.39“] 6 = radial M12 connector, 8 pin
4 = ø 12 mm [0.47“]
5 = ø 14 mm [0.55“] *) Available special lengths (connection types B, F):
K = ø 10 mm [0.39“], tapered shaft 2, 3, 5, 8, 10, 15 m [6.56, 9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.5834FS3.B42B.2048.0030 (for cable length 3 m)
c Output circuit / power supply
1 = SinCos / 5 V DC
2 = SinCos / 10 ... 30 V DC
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 93
