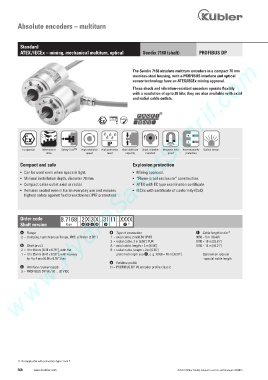

Absolute encoders – multiturn

Standard
ATEX / IECEx – mining, mechanical multiturn, optical Sendix 7168 (shaft) PROFIBUS DP
www.HydroSanatSharif.com

The Sendix 7168 absolute multiturn encoders in a compact 70 mm
stainless-steel housing, with a PROFIBUS interface and optical
sensor technology have an ATEX/IECEx mining approval.
These shock and vibration-resistant encoders operate flexibly
with a resolution of up to 28 bits; they are also available with axial
and radial cable outlets.

RoHS

IP
Ex approval Mechanical Safety-Lock TM High rotational High protection High shaft load Shock / vibration Magnetic field Reverse polarity Optical sensor
drive speed level capacity resistant proof protection

Compact and safe Explosion protection
• Can be used even when space is tight. • Mining approval.
• Minimal installation depth, diameter 70 mm. • “Flame-proof enclosure” construction.
• Compact cable outlet axial or radial. • ATEX with EC type examination certificate.
• Remains sealed even in harsh everyday use and ensures • IECEx with certificate of conformity (CoC).
highest safety against field breakdowns (IP67 protection).

Order code 8.7168 . 2 X 3 X . 31 11 . XXXX
Shaft version Type a b c d e f 1)
a Flange d Type of connection f Cable length in dm 1)
2 = clamping / synchronous flange, IP67, ø 70 mm [2.76“] 1 = axial cable, 2 m [6.56‘] PUR 0050 = 5 m [16.40‘]
2 = radial cable, 2 m [6.56‘] PUR 0100 = 10 m [32.81‘]
b Shaft (ø x L) A = axial cable, length > 2 m [6.56‘] 0150 = 15 m [49.21‘]
2 = 10 x 20 mm [0.39 x 0.79“], with flat B = radial cable, length > 2 m [6.56‘]
1 = 12 x 25 mm [0.47 x 0.98“], with keyway preferred length see f , e. g.: 0100 = 10 m [32.81‘] Optional on request
for 4 x 4 mm [0.16 x 0.16“] key - special cable length
e Fieldbus profile
c Interface / power supply 31 = PROFIBUS DP V0 encoder profile class 2
3 = PROFIBUS DP V0 / 10 ... 30 V DC

1) Not applicable with connection types 1 and 2.
