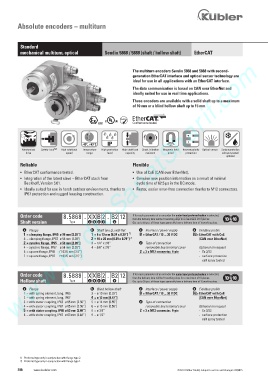

Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5868 / 5888 (shaft / hollow shaft) EtherCAT
www.HydroSanatSharif.com

The multiturn encoders Sendix 5868 and 5888 with second-
generation EtherCAT interface and optical sensor technology are
ideal for use in all applications with an EtherCAT interface.
The data communication is based on CAN over EtherNet and
ideally suited for use in real time applications.

These encoders are available with a solid shaft up to a maximum
of 10 mm or a blind hollow shaft up to 15 mm.

RoHS
2/22

-40°... +80°C IP
Mechanical Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity Optical sensor Surface protection
drive speed range level capacity resistant proof protection salt spray-tested
optional
Reliable Flexible
• EtherCAT conformance tested. • Use of CoE (CAN over EtherNet).
• Integration of the latest slave – EtherCAT stack from • Genuine new position information as a result of minimal
Beckhoff, Version 5.01. cycle time of 62.5 µs in the DC mode.
• Ideally suited for use in harsh outdoor environments, thanks to • Faster, easier error-free connection thanks to M12 connectors.
IP67 protection and rugged housing construction.

Order code 8.5868 . X XB 2 . B2 12 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange b Shaft (ø x L), with flat c Interface / power supply e Fieldbus profile
1 = clamping flange, IP65 ø 58 mm [2.28“] 1 = 6 x 10 mm [0.24 x 0.39“] 1) B = EtherCAT / 10 ... 30 V DC B2= EtherCAT with CoE
3 = clamping flange, IP67 ø 58 mm [2.28“] 2 = 10 x 20 mm [0.39 x 0.79“] 2) (CAN over EtherNet)
2 = synchro flange, IP65 ø 58 mm [2.28“] 3 = 1/4“ x 7/8“ d Type of connection
4 = synchro flange, IP67 ø 58 mm [2.28“] 4 = 3/8“ x 7/8“ removable bus terminal cover Optional on request
5 = square flange, IP65 63.5 mm [2.5“] 2 = 3 x M12 connector, 4-pin - Ex 2/22
7 = square flange, IP67 63.5 mm [2.5“] - surface protection
salt spray tested

Order code 8.5888 . X XB 2 . B2 12 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange b Blind hollow shaft c Interface / power supply e Fieldbus profile
1 = with spring element, long, IP65 3 = ø 10 mm [0.39“] B = EtherCAT / 10 ... 30 V DC B2= EtherCAT with CoE
2 = with spring element, long, IP67 4 = ø 12 mm [0.47“] (CAN over EtherNet)
3 = with stator coupling, IP65 ø 65 mm [2.56“] 5 = ø 14 mm [0.55“] d Type of connection
4 = with stator coupling, IP67 ø 65 mm [2.56“] 6 = ø 15 mm [0.59“] removable bus terminal cover Optional on request
5 = with stator coupling, IP65 ø 63 mm [2.48“] 8 = ø 3/8“ 2 = 3 x M12 connector, 4-pin - Ex 2/22
6 = with stator coupling, IP67 ø 63 mm [2.48“] 9 = ø 1/2“ - surface protection
salt spray tested

1) Preferred type only in conjunction with flange type 2.
2) Preferred type only in conjunction with flange type 1.
