Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5868 / 5888 (shaft / hollow shaft) CANopen/CANopenLift
www.HydroSanatSharif.com

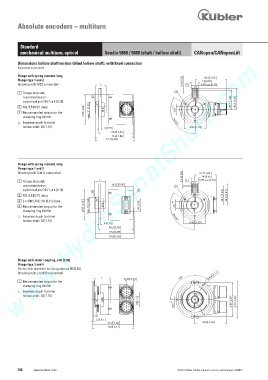

Dimensions hollow shaft version (blind hollow shaft), with fixed connection
Dimensions in mm [inch]

Flange with spring element, long
Flange type 1 and 2 > @ > @
(drawing with M23 connector) / > @

1 Torque stop slot,
recommendation:
cylindrical pin DIN 7, ø 4 [0.16] > @ > @
2 M3, 5.5 [0.21] deep + '
3 Recommended torque for the PD[ > @
clamping ring 0.6 Nm
L: Insertion depth for blind [ ƒ
hollow shaft: 30 [1.18] > @ > @

Flange with spring element, long
Flange type 1 and 2
(drawing with Sub-D connector)
> @
1 Torque stop slot, / > @ > @
recommendation:
cylindrical pin DIN 7, ø 4 [0.16]

2 M3, 5.5 [0.21] deep > @ > @
3 2 x 4/40 UNC; 3.0 [0.21] deep +
4 Recommended torque for the PD[ > @ '
clamping ring 0.6 Nm
L: Insertion depth for blind [ ƒ
hollow shaft: 30 [1.18]
> @ > @

Flange with stator coupling, ø 65 [2.56]
Flange type 3 and 4
Pitch circle diameter for fixing screws 65 [2.56]
(drawing with 2 x M23 connector)
/ ƒ
1 Recommended torque for the
clamping ring 0.6 Nm
L: Insertion depth for blind
hollow shaft: 30 [1.18]

' +

336 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
