Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5868 / 5888 (shaft / hollow shaft) CANopen/CANopenLift
www.HydroSanatSharif.com

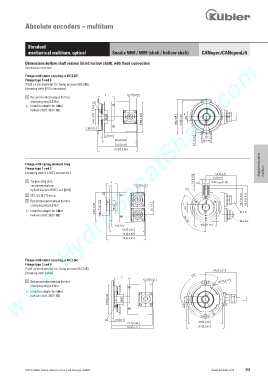

Dimensions hollow shaft version (blind hollow shaft), with fixed connection
Dimensions in mm [inch]

Flange with stator coupling, ø 63 [2.48]
Flange type 5 and 6
Pitch circle diameter for fixing screws 63 [2.48]
(drawing with M12 connector)
/
1 Recommended torque for the
clamping ring 0.6 Nm
L: Insertion depth for blind
hollow shaft: 30 [1.18]
+ '
PD[

ƒ

Absolute encoders

Flange with spring element, long
Flange type 1 and 2
(drawing with 2 x M12 connector) multiturn
> @
1 Torque stop slot, / > @ > @
recommendation:
cylindrical pin DIN 7, ø 4 [0.16]
2 M3, 5.5 [0.21] deep
3 Recommended torque for the > @ > @
clamping ring 0.6 Nm + '
L: Insertion depth for blind PD[ > @ %XV LQ
hollow shaft: 30 [1.18]
%XV RXW
[ ƒ
> @ > @

Flange with stator coupling, ø 65 [2.56]
Flange type 3 and 4
Pitch circle diameter for fixing screws 65 [2.56]
(drawing with cable)
/ ƒ

1 Recommended torque for the
clamping ring 0.6 Nm
L: Insertion depth for blind
hollow shaft: 30 [1.18]
' +

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 337
