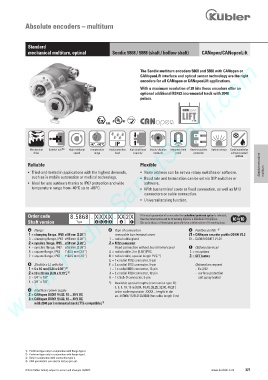

Page 329 - Keubler Motion Sensors

Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5868 / 5888 (shaft / hollow shaft) CANopen/CANopenLift
www.HydroSanatSharif.com

The Sendix multiturn encoders 5868 and 5888 with CANopen or
CANopenLift interface and optical sensor technology are the right
encoders for all CANopen or CANopenLift applications.
With a maximum resolution of 28 bits these encoders offer an
optional additional RS422 incremental track with 2048
pulses.

RoHS
2/22

-40°... +80°C IP
Mechanical Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity Optical sensor Surface protection
drive speed range level capacity resistant proof protection salt spray-tested
optional
Reliable Flexible Absolute encoders
• Tried-and-tested in applications with the highest demands, • Node address can be set via rotary switches or software. multiturn
such as in mobile automation or medical technology. • Baud rate and termination can be set via DIP switches or
• Ideal for use outdoors thanks to IP67 protection and wide software.
temperature range from -40°C up to +80°C. • With bus terminal cover or fixed connection, as well as M12
connectors or cable connection.
• Universal scaling function.

Order code 8.5868 . X X X X . XX 2 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection e Fieldbus profile 4)
1 = clamping flange, IP65 ø 58 mm [2.28“] removable bus terminal cover 21 = CANopen encoder profile DS406 V3.2
3 = clamping flange, IP67 ø 58 mm [2.28“] 1 = radial cable gland 22 = CANlift DS417 V1.01
2 = synchro flange, IP65 ø 58 mm [2.28“] 2 = M12 connector
4 = synchro flange, IP67 ø 58 mm [2.28“] Fixed connection without bus terminal cover f Options (service)
5 = square flange, IP65 63.5 mm [2.5“] A = radial cable, 2 m [6.56‘] PVC 2 = no options
7 = square flange, IP67 63.5 mm [2.5“] B = radial cable, special length PVC *) 3 = SET button
E = 1 x radial M12 connector, 5-pin
b Shaft (ø x L), with flat F = 2 x radial M12 connector, 5-pin Optional on request
1 = 6 x 10 mm [0.24 x 0.39“] 1) I = 1 x radial M23 connector, 12-pin - Ex 2/22
2 = 10 x 20 mm [0.39 x 0.79“] 2) J = 2 x radial M23 connector, 12-pin - surface protection
3 = 1/4“ x 7/8“ K = 1 x Sub-D connector, 9-pin salt spray tested
4 = 3/8“ x 7/8“ *) Available special lengths (connection type B):
3, 5, 8, 10, 15 m [9.84, 16.40, 26.25, 32.80, 49.21‘]
c Interface / power supply order code expansion .XXXX = length in dm
2 = CANopen DS301 V4.02, 10 ... 30 V DC ex.: 8.5868.112B.2123.0030 (for cable length 3 m)
5 = CANopen DS301 V4.02, 10 ... 30 V DC
with 2048 ppr incremental track (TTL-compatible) 3)

1) Preferred type only in conjunction with flange type 2.
2) Preferred type only in conjunction with flange type 1.
3) Only in conjunction with connection type 2.
4) CAN parameters can also be factory pre-set.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 327
