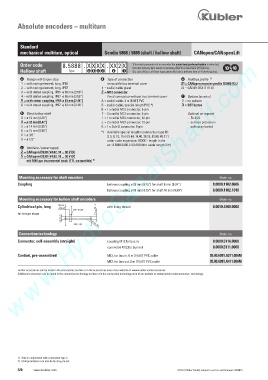

Absolute encoders – multiturn

Standard
mechanical multiturn, optical Sendix 5868 / 5888 (shaft / hollow shaft) CANopen/CANopenLift
www.HydroSanatSharif.com
Order code 8.5888 . X X X X . XX 2 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange with torque stop d Type of connection e Fieldbus profile 2)
1 = with spring element, long, IP65 removable bus terminal cover 21 = CANopen encoder profile DS406 V3.2
2 = with spring element, long, IP67 1 = radial cable gland 22 = CANlift DS417 V1.01
3 = with stator coupling, IP65 ø 65 mm [2.56“] 2 = M12 connector
4 = with stator coupling, IP67 ø 65 mm [2.56“] Fixed connection without bus terminal cover f Options (service)
5 = with stator coupling, IP65 ø 63 mm [2.48“] A = radial cable, 2 m [6.56‘] PVC 2 = no options
6 = with stator coupling, IP67 ø 63 mm [2.48“] B = radial cable, special length PVC *) 3 = SET button
E = 1 x radial M12 connector, 5-pin
b Blind hollow shaft F = 2 x radial M12 connector, 5-pin Optional on request
3 = ø 10 mm [0.39“] I = 1 x radial M23 connector, 12-pin - Ex 2/22
4 = ø 12 mm [0.47“] J = 2 x radial M23 connector, 12-pin - surface protection
5 = ø 14 mm [0.55“] K = 1 x Sub-D connector, 9-pin salt spray tested
6 = ø 15 mm [0.59“] *) Available special lengths (connection type B):
8 = ø 3/8“ 3, 5, 8, 10, 15 m [9.84, 16.40, 26.25, 32.80, 49.21‘]
9 = ø 1/2“ order code expansion .XXXX = length in dm
ex.: 8.5888.542B.2123.0030 (for cable length 3 m)
c Interface / power supply
2 = CANopen DS301 V4.02, 10 ... 30 V DC
5 = CANopen DS301 V4.02, 10 ... 30 V DC
mit 2048 ppr incremental track (TTL-compatible) 1)

Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 6 mm [0.24“] 8.0000.1102.0606
bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Mounting accessory for hollow shaft encoders Order no.

Cylindrical pin, long with fixing thread 8.0010.4700.0000
6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) coupling M12 for bus in 8.0000.5116.0000
connector M12 for bus out 8.0000.5111.0000
Cordset, pre-assembled M12, for bus in, 6 m [19.68‘] PVC cable 05.00.6091.A211.006M
M12, for bus out, 6 m [19.68‘] PVC cable 05.00.6091.A411.006M
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

1) Only in conjunction with connection type 2.
2) CAN parameters can also be factory pre-set.
