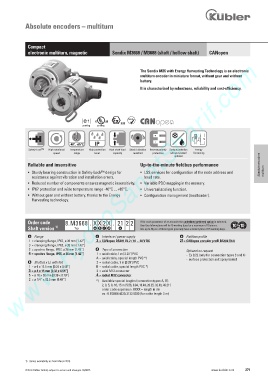

Absolute encoders – multiturn

Compact
electronic multiturn, magnetic Sendix M3668 / M3688 (shaft / hollow shaft) CANopen
www.HydroSanatSharif.com

The Sendix M36 with Energy Harvesting Technology is an electronic
multiturn encoder in miniature format, without gear and without
battery.
It is characterized by robustness, reliability and cost-efficiency.

RoHS
2/22
pending pending

-40°... +85°C IP
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Reverse polarity Surface protection Energy
speed range level capacity resistant protection salt spray-tested Harvesting
optional
Reliable and insensitive Up-to-the-minute fieldbus performance Absolute encoders
• Sturdy bearing construction in Safety-Lock™ design for • LSS services for configuration of the node address and multiturn
resistance against vibration and installation errors. baud rate.
• Reduced number of components ensures magnetic insensitivity. • Variable PDO mapping in the memory.
• IP67 protection and wide temperature range -40°C ... +85°C. • Universal scaling function.
• Without gear and without battery, thanks to the Energy • Configuration management (bootloader).
Harvesting technology.

Order code 8.M3668 . X X 2 X . 21 2 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version 1) Typ a b c d e Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Fieldbus profile
1 = clamping flange, IP67, ø 36 mm [1.42“] 2 = CANopen DS301 V4.2 / 10 ... 30 V DC 21 = CANopen encoder profil DS406 V4.0
3 = clamping flange, IP65, ø 36 mm [1.42“]
2 = synchro flange, IP67, ø 36 mm [1.42“] d Type of connection Optional on request
4 = synchro flange, IP65, ø 36 mm [1.42“] 1 = axial cable, 1 m [3.28‘] PVC - Ex 2/22 (only for connection types 3 and 4)
A = axial cable, special length PVC *) - surface protection salt spray tested
b Shaft (ø x L), with flat 2 = radial cable, 1 m [3.28‘] PVC
1 = ø 6 x 12.5 mm [0.24 x 0.49“] B = radial cable, special length PVC *)
3 = ø 8 x 15 mm [0.32 x 0.59“] 3 = axial M12 connector
5 = ø 10 x 20 mm [0.39 x 0.79“] 4 = radial M12 connector
2 = ø 1/4” x 12.5 mm [0.49“] *) Available special lengths (connection types A, B):
2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘]
order code expansion .XXXX = length in dm
ex.: 8.M3668.432A.2122.0030 (for cable length 3 m)

1) Series availability as from March 2015.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 271
