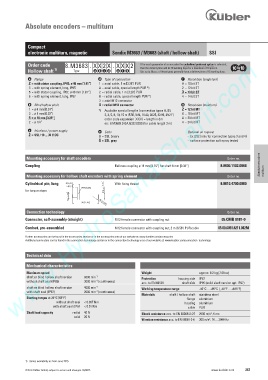

Page 269 - Keubler Motion Sensors

Absolute encoders – multiturn

Compact
electronic multiturn, magnetic Sendix M3663 / M3683 (shaft / hollow shaft) SSI
www.HydroSanatSharif.com
Order code 8.M3683 . X X 2 X . X X X 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Hollow shaft 1) Type a b c d e f g Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection f Resolution (singleturn)
2 = with stator coupling, IP65, ø 46 mm [1.81“] 1 = axial cable, 1 m [3.28‘] PUR A = 10 bit ST
3 = with spring element, long, IP65 A = axial cable, special length PUR *) 2 = 12 bit ST
5 = with stator coupling, IP67, ø 46 mm [1.81“] 2 = radial cable, 1 m [3.28‘] PUR 3 = 13 bit ST
6 = with spring element, long, IP67 B = radial cable, special length PUR *) 4 = 14 bit ST
3 = axial M12 connector
b Blind hollow shaft 4 = radial M12 connector g Resolution (multiturn)

1 = ø 6 mm [0.24“] *) Available special lengths (connection types A, B): 2 = 12 bit MT
3 = ø 8 mm [0.32“] 2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] 6 = 16 bit MT
4 = ø 10 mm [0.39“] order code expansion .XXXX = length in dm A = 20 bit MT
2 = ø 1/4” ex.: 8.M3683.242A.G322.0030 (for cable length 3 m) 4 = 24 bit MT
c Interface / power supply
e Code Optional on request
2 = SSI / 10 ... 30 V DC B = SSI, binary - Ex 2/22 (only for connection types 3 and 4)
G = SSI, gray - surface protection salt spray tested

Absolute encoders
Mounting accessory for shaft encoders Order no.
Coupling Bellows coupling ø 19 mm [0.75“] for shaft 8 mm [0.32“] 8.0000.1102.0808 multiturn

Mounting accessory for hollow shaft encoders with spring element Order no.
Cylindrical pin, long With fixing thread 8.0010.4700.0000

6: > @ P
for torque stops

0 5

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling nut 05.CMB 8181-0

Cordset, pre-assembled M12 female connector with coupling nut, 2 m [6.56‘] PUR cable 05.00.6051.8211.002M
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology

Technical data

Mechanical characteristics
Maximum speed Weight approx. 0.2 kg [7.06 oz]
shaft or blind hollow shaft version 6000 min -1 Protection housing side IP67
-1
without shaft seal (IP65) 3000 min (continuous) acc. to EN 60529 shaft side IP65 (solid shaft version opt. IP67)
shaft or blind hollow shaft version 4000 min -1 Working temperature range -40°C ... +85°C [-40°F ... +185°F]
-1
with shaft seal (IP67) 2000 min (continuous)
Materials shaft / hollow shaft stainless steel
Starting torque at 20°C [68°F] flange aluminium
without shaft seal < 0.007 Nm housing aluminium
with shaft seal (IP67 < 0.01 Nm cable PUR
Shaft load capacity radial 40 N Shock resistance acc. to EN 60068-2-27 2500 m/s , 6 ms
2
axial 20 N
2
Vibration resistance acc. to EN 60068-2-6 300 m/s , 10 ... 2000 Hz

1) Series availability as from June 2015.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 267
