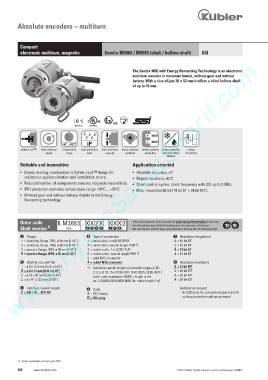

Absolute encoders – multiturn

Compact
electronic multiturn, magnetic Sendix M3663 / M3683 (shaft / hollow shaft) SSI
www.HydroSanatSharif.com

The Sendix M36 with Energy Harvesting Technology is an electronic
multiturn encoder in miniature format, without gear and without
battery. With a size of just 36 x 53 mm it offers a blind hollow shaft
of up to 10 mm.

RoHS
2/22
pending pending

-40°... +85°C IP
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Reverse polarity Surface protection Energy
speed range level capacity resistant protection salt spray tested Harvesting
optional
Reliable and insensitive Application oriented
• Sturdy bearing construction in Safety-Lock™ design for • Absolute accuracy ±1°.
resistance against vibration and installation errors. • Repeat accuracy ±0.2°.
• Reduced number of components ensures magnetic insensitivity. • Short control cycles, clock frequency with SSI up to 2 MHz.
• IP67 protection and wide temperature range -40°C ... +85°C. • Max. resolution 38 bit (14 bit ST + 24 bit MT).
• Without gear and without battery, thanks to the Energy
Harvesting technology.

Order code 8.M3663 . X X 2 X . X X X 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version 1) Type a b c d e f g Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection f Resolution (singleturn)
1 = clamping flange, IP67, ø 36 mm [1.42“] 1 = axial cable, 1 m [3.28‘] PUR A = 10 bit ST
3 = clamping flange, IP65, ø 36 mm [1.42“] A = axial cable, special length PUR *) 2 = 12 bit ST
2 = synchro flange, IP67, ø 36 mm [1.42“] 2 = radial cable, 1 m [3.28‘] PUR 3 = 13 bit ST
4 = synchro flange, IP65, ø 36 mm [1.42“] B = radial cable, special length PUR *) 4 = 14 bit ST
3 = axial M12 connector
b Shaft (ø x L), with flat 4 = radial M12 connector g Resolution (multiturn)

1 = ø 6 x 12.5 mm [0.24 x 0.49“] *) Available special lengths (connection types A, B): 2 = 12 bit MT
3 = ø 8 x 15 mm [0.32 x 0.59“] 2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] 6 = 16 bit MT
5 = ø 10 x 20 mm [0.39 x 0.79“] order code expansion .XXXX = length in dm A = 20 bit MT
2 = ø 1/4” x 12.5 mm [0.49“] ex.: 8.M3663.432A.G322.0030 (for cable length 3 m) 4 = 24 bit MT
c Interface / power supply
e Code Optional on request
2 = SSI / 10 ... 30 V DC B = SSI, binary - Ex 2/22 (only for connection types 3 and 4)
G = SSI, gray - surface protection salt spray tested

1) Series availability as from June 2015.
