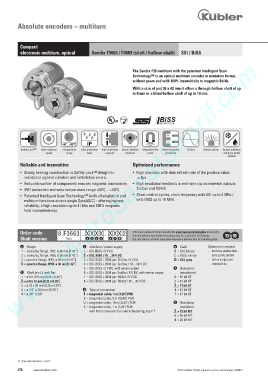

Absolute encoders – multiturn

Compact
electronic multiturn, optical Sendix F3663 / F3683 (shaft / hollow shaft) SSI / BiSS
www.HydroSanatSharif.com

The Sendix F36 multiturn with the patented Intelligent Scan
Technology™ is an optical multiturn encoder in miniature format,
without gears and with 100% insensitivity to magnetic fields.
With a size of just 36 x 42 mm it offers a through hollow shaft of up
to 8 mm or a blind hollow shaft of up to 10 mm.

RoHS

-40°... +90°C IP
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity SinCos Optical sensor Surface protection
speed range level capacity resistant proof protection salt spray-tested
optional
Reliable and insensitive Optimised performance
• Sturdy bearing construction in Safety-Lock™ design for • High precision with data refresh rate of the position value
resistance against vibration and installation errors. ) 1µs.
• Reduced number of components ensures magnetic insensitivity. • High resolution feedback in real-time via incremental outputs
• IP67 protection and wide temperature range -40°C ... +90°C. SinCos and RS422.
• Patented Intelligent Scan Technology™ (with all singleturn and • Short control cycles, clock frequency with SSI up to 2 MHz /
multiturn functions on one single OptoASIC) - offering highest with BiSS up to 10 MHz.
reliability, a high resolution up to 41 bits and 100% magnetic
field insensitiveness.

Order code 8.F3663 . X X X X . X X X 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f g Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Interface / power supply e Code Optional on request
1 = clamping flange, IP67, ø 36 mm [1.42“] 1 = SSI, BiSS / 5 V DC B = SSI, binary - surface protection
3 = clamping flange, IP65, ø 36 mm [1.42“] 2 = SSI, BiSS / 10 ... 30 V DC C = BiSS, binary salt spray tested
2 = synchro flange, IP67, ø 36 mm [1.42“] 3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC G = SSI, gray - other singleturn
4 = synchro flange, IP65, ø 36 mm [1.42“] 4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC resolutions
5 = SSI, BiSS / 5 V DC, with sensor output f Resolution
b Shaft (ø x L), with flat 6 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC, with sensor output (singleturn)
1 = ø 6 x 12.5 mm [0.24 x 0.49“] 7 = SSI, BiSS + 2048 ppr. RS422 / 5 V DC A = 10 bit ST
3 = ø 8 x 15 mm [0.32 x 0.59“] 8 = SSI, BiSS + 2048 ppr. RS422 / 10 ... 30 V DC 2 = 12 bit ST
5 = ø 10 x 20 mm [0.39 x 0.79“] 3 = 13 bit ST
2 = ø 1/4” x 12.5 mm [0.49“] d Type of connection 4 = 14 bit ST
4 = ø 3/8” x 5/8“ 1 = tangential cable, 1 m [3.28‘] PUR 7 = 17 bit ST
3 = tangential cable, 5 m [16.40‘] PUR
U = tangential cable, 10 m [32.81‘] PUR g Resolution

5 = tangential cable, 1 m [3.28‘] PUR (multiturn)
with M12 connector for central fastening, 8-pin 1) 2 = 12 bit MT
6 = 16 bit MT
4 = 24 bit MT

1) Only with interface 1 and 2.
276 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
