Absolute encoders - singleturn

Standard
optical Sendix 5858 / 5878 (shaft / hollow shaft) CANopen
www.HydroSanatSharif.com

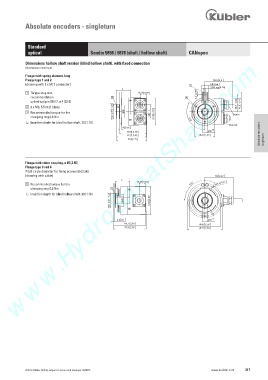

Dimensions hollow shaft version (blind hollow shaft), with fixed connection
Dimensions in mm [inch]

Flange with spring element, long
Flange type 1 and 2
(drawing with 2 x M12 connector)

> @

/
1 Torque stop slot,
recommendation:
cylindrical pin DIN 7, ø 4 [0.16]
2 3 x M3, 5.5 [0.21] deep
3 Recommended torque for the %XV LQ
clamping ring 0.6 Nm PD[ ƒ
L: Insertion depth for blind hollow shaft: 30 [1.18]
%XV RXW

' +
Absolute encoders
singleturn

Flange with stator coupling, ø 65 [2.56]
Flange type 3 and 4
Pitch circle diameter for fixing screws 65 [2.56]
(drawing with cable)
/

1 Recommended torque for the ƒ
clamping ring 0.6 Nm
L: Insertion depth for blind hollow shaft: 30 [1.18]

PD[

' +
