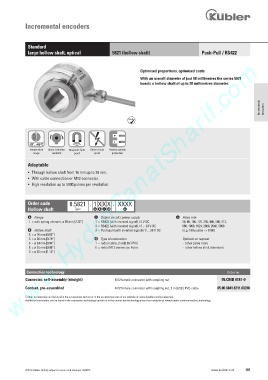

Incremental encoders

Standard
large hollow shaft, optical 5821 (hollow shaft) Push-Pull / RS422
www.HydroSanatSharif.com

Optimised proportions, optimised costs:
With an overall diameter of just 58 millimetres the series 5821
boasts a hollow shaft of up to 28 millimetres diameter.

Incremental encoders

RoHS

-20°... +85°C
Temperature Shock / vibration Magnetic field Short-circuit Reverse polarity
range resistant proof proof protection

Adaptable
• Through hollow shaft from 16 mm up to 28 mm.
• With cable connection or M12 connector.
• High resolution up to 5000 pulses per revolution.

Order code 8.5821 . 1 X X X . XXXX
Hollow shaft Type a b c d e

a Flange c Output circuit / power supply e Pulse rate
1 = with spring element, ø 58 mm [2.28“] 1 = RS422 (with inverted signal) / 5 V DC 50, 60, 100, 125, 250, 400, 500, 512,
4 = RS422 (with inverted signal) / 8 ... 30 V DC 960, 1000, 1024, 2000, 2048, 5000
b Hollow shaft 3 = Push-pull (with inverted signal) / 8 ... 30 V DC (e.g. 100 pulses => 0100)
K = ø 16 mm [0.63“]
C = ø 20 mm [0.79“] d Type of connection Optional on request
6 = ø 24 mm [0.94“] 1 = radial cable, 2 m [6.56‘] PVC - other pulse rates
5 = ø 25 mm [0.98“] E = radial M12 connector, 8-pin - other hollow shaft diameters
3 = ø 28 mm [1.10“]

Connection technology Order no.
Connector, self-assembly (straight) M12 female connector with coupling nut 05.CMB 8181-0
Cordset, pre-assembled M12 female connector with coupling nut, 2 m [6.56‘] PVC cable 05.00.6041.8211.002M

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 107
