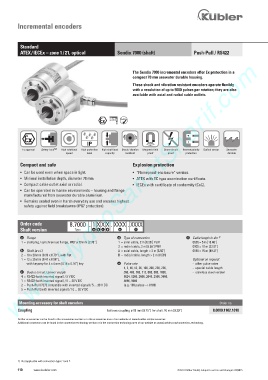

Incremental encoders

Standard
ATEX / IECEx – zone 1 / 21, optical Sendix 7000 (shaft) Push-Pull / RS422
www.HydroSanatSharif.com

The Sendix 7000 incremental encoders offer Ex protection in a
compact 70 mm seawater durable housing.
These shock and vibration resistant encoders operate flexibly
with a resolution of up to 5000 pulses per rotation; they are also
available with axial and radial cable outlets.

RoHS

IP
Ex approval Safety-Lock TM High rotational High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor Seawater
speed level capacity resistant proof proof protection durable

Compact and safe Explosion protection
• Can be used even when space is tight. • “Flameproof-enclosure” version.
• Minimal installation depth, diameter 70 mm. • ATEX with EC type examination certificate.
• Compact cable outlet axial or radial. • IECEx with certificate of conformity (CoC).
• Can be operated in marine environments – housing and flange
manufactured from seawater durable aluminium.
• Remains sealed even in harsh everyday use and ensures highest
safety against field breakdowns (IP67 protection).

Order code 8.7000 . 1 X X X . XXXX . XXXX
Shaft version Type a b c d e f

a Flange d Type of connection f Cable length in dm 1)
1 = clamping / synchronous flange, IP67 ø 70 mm [2.76“] 1 = axial cable, 2 m [6.56‘] PUR 0050 = 5 m [16.40‘]
2 = radial cable, 2 m [6.56‘] PUR 0100 = 10 m [32.81‘]
b Shaft (ø x L) A = axial cable, length > 2 m [6.56‘] 0150 = 15 m [49.21‘]
2 = 10 x 20 mm [0.39 x 0.79“], with flat B = radial cable, length > 2 m [6.56‘]
1 = 12 x 25 mm [0.47 x 0.98“], Optional on request
with keyway for 4 x 4 mm [0.16 x 0.16“] key e Pulse rate - other pulse rates
1, 5, 10, 12, 36, 100, 200, 250, 256, - special cable length
c Output circuit / power supply 360, 400, 500, 512, 600, 800, 1000, - stainless steel version
4 = RS422 (with inverted signal) / 5 V DC 1024, 1200, 2000, 2048, 2500, 3600,
1 = RS422 (with inverted signal) / 5 ... 30 V DC 4096, 5000
2 = Push-Pull (7272 compatible with inverted signal) / 5 ... 30 V DC (e.g. 100 pulses => 0100)
5 = Push-Pull (with inverted signal) / 10 ... 30 V DC

Mounting accessory for shaft encoders Order no.

Coupling bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

1) Not applicable with connection types 1 and 2.
