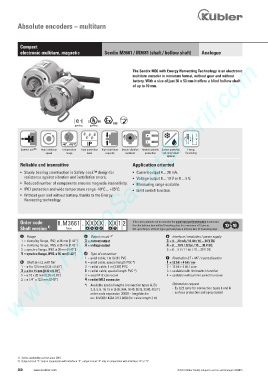

Absolute encoders – multiturn

Compact
Kompakt
elektronischer Multiturn, magnetisch Sendix M3661 / M3681 (shaft / hollow shaft)M3661 / M3681 (shaft / hollow shaft) Analog
electronic multiturn, magnetic
Analogue
Sendix
www.HydroSanatSharif.com
The Sendix M36 with Energy Harvesting Technology is an electronic
multiturn encoder in miniature format, without gear and without
battery. With a size of just 36 x 53 mm it offers a blind hollow shaft
of up to 10 mm.

RoHS
2/22
pending pending

-40°... +85°C IP
Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Reverse polarity Surface protection Energy
speed range level capacity resistant protection salt spray tested Harvesting
optional
Reliable and insensitive Application oriented
• Sturdy bearing construction in Safety-Lock™ design for • Current output 4 ... 20 mA.
resistance against vibration and installation errors. • Voltage output 0 ... 10 V or 0 ... 5 V.
• Reduced number of components ensures magnetic insensitivity. • Measuring range scalable.
• IP67 protection and wide temperature range -40°C ... +85°C. • Limit switch function.
• Without gear and without battery, thanks to the Energy
Harvesting technology.

Order code 8.M3661 . X X X X . X X 1 2 If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version 1) Type a b c d e f Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange c Output circuit 2) e Interface / resolution / power supply
1 = clamping flange, IP67, ø 36 mm [1.42“] 3 = current output 3 = 4 ... 20 mA / 12 bit / 10 ... 30 V DC
3 = clamping flange, IP65, ø 36 mm [1.42“] 4 = voltage output 4 = 0 ... 10 V / 12 bit / 15 ... 30 V DC
2 = synchro flange, IP67, ø 36 mm [1.42“] 5 = 0 ... 5 V / 11 bit / 10 ... 30 V DC
4 = synchro flange, IP65, ø 36 mm [1.42“] d Type of connection
1 = axial cable, 1 m [3.28‘] PVC f Resolution ST + MT / count direction
b Shaft (ø x L), with flat A = axial cable, special length PVC *) 1 = 12 bit + 4 bit / cw
1 = ø 6 x 12.5 mm [0.24 x 0.49“] 2 = radial cable, 1 m [3.28‘] PVC 2 = 12 bit + 4 bit / ccw
3 = ø 8 x 15 mm [0.32 x 0.59“] B = radial cable, special length PVC *) 3 = scalable with limit switch function
5 = ø 10 x 20 mm [0.39 x 0.79“] 3 = axial M12 connector 4 = scalable without limit switch function
2 = ø 1/4” x 12.5 mm [0.49“] 4 = radial M12 connector
*) Available special lengths (connection types A, B): Optional on request
2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] - Ex 2/22 (only for connection types 3 and 4)
order code expansion .XXXX = length in dm - surface protection salt spray tested
ex.: 8.M3661.433A.3112.0030 (for cable length 3 m)

1) Series availability as from June 2015.
2) Output circuit “3“ only in conjunction with interface “3“, output circuit “4“ only in conjunction with interface “4“ or “5“.
