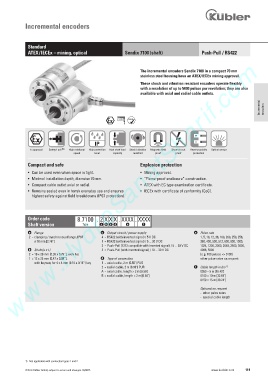

Incremental encoders

Standard
ATEX / IECEx – mining, optical Sendix 7100 (shaft) Push-Pull / RS422
www.HydroSanatSharif.com

The incremental encoders Sendix 7100 in a compact 70 mm
stainless steel housing have an ATEX/IECEx mining approval.

These shock and vibration resistant encoders operate flexibly
with a resolution of up to 5000 pulses per revolution; they are also
available with axial and radial cable outlets.

Incremental encoders

RoHS

IP
Ex approval Safety-Lock TM High rotational High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor
speed level capacity resistant proof proof protection

Compact and safe Explosion protection
• Can be used even when space is tight. • Mining approval.
• Minimal installation depth, diameter 70 mm. • “Flame-proof enclosure” construction.
• Compact cable outlet axial or radial. • ATEX with EC type examination certificate.
• Remains sealed even in harsh everyday use and ensures • IECEx with certificate of conformity (CoC).
highest safety against field breakdowns (IP67 protection).

Order code 8.7100 . 2 X X X . XXXX . XXXX
Shaft version Type a b c d e f
a Flange c Output circuit / power supply e Pulse rate
2 = clamping / synchronous flange, IP67 4 = RS422 (with inverted signal) / 5 V DC 1, 5, 10, 12, 36, 100, 200, 250, 256,
ø 70 mm [2.76“] 1 = RS422 (with inverted signal) / 5 ... 30 V DC 360, 400, 500, 512, 600, 800, 1000,
2 = Push-Pull (7272 compatible with inverted signal) / 5 ... 30 V DC 1024, 1200, 2000, 2048, 2500, 3600,
b Shaft (ø x L) 5 = Push-Pull (with inverted signal) / 10 ... 30 V DC 4096, 5000
2 = 10 x 20 mm [0.39 x 0.79“], with flat (e.g. 100 pulses => 0100)
1 = 12 x 25 mm [0.47 x 0.98“], d Type of connection other pulse rates on request
with keyway for 4 x 4 mm [0.16 x 0.16“] key 1 = axial cable, 2 m [6.56‘] PUR
2 = radial cable, 2 m [6.56‘] PUR f Cable length in dm 1)
A = axial cable, length > 2 m [6.56‘] 0050 = 5 m [16.40‘]
B = radial cable, length > 2 m [6.56‘] 0100 = 10 m [32.81‘]
0150 = 15 m [49.21‘]

Optional on request
- other pulse rates
- special cable length

1) Not applicable with connection types 1 and 2.
