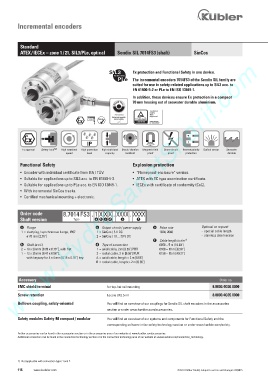

Page 118 - Keubler Motion Sensors

Incremental encoders

Standard
ATEX / IECEx – zone 1 / 21, SIL3/PLe, optical Sendix SIL 7014FS3 (shaft) SinCos
www.HydroSanatSharif.com

Ex protection and Functional Safety in one device.
The incremental encoders 7014FS3 of the Sendix SIL family are
suited for use in safety-related applications up to SIL3 acc. to
EN 61800-5-2 or PLe to EN ISO 13849-1.
In addition, these devices ensure Ex protection in a compact
70 mm housing out of seawater durable aluminium.

RoHS

IP
Ex approval Safety-Lock TM High rotational High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor Seawater
speed level capacity resistant proof proof protection durable

Functional Safety Explosion protection
• Encoder with individual certificate from IFA / TÜV. • “Flameproof-enclosure” version.
• Suitable for applications up to SIL3 acc. to EN 61800-5-2. • ATEX with EC type examination certificate.
• Suitable for applications up to PLe acc. to EN ISO 13849-1. • IECEx with certificate of conformity (CoC).
• With incremental SinCos tracks.
• Certified mechanical mounting + electronic.

Order code 8.7014 FS3 . 1 X X X . XXXX . XXXX
Shaft version Type a b c d e f

a Flange c Output circuit / power supply e Pulse rate Optional on request
1 = clamping / synchronous flange, IP67 1 = SinCos / 5 V DC 1024, 2048 - special cable length
ø 70 mm [2.76“] 2 = SinCos / 10 ... 30 V DC - stainless steel version
f Cable length in dm 1)
b Shaft (ø x L) d Type of connection 0050 = 5 m [16.40‘]
2 = 10 x 20 mm [0.39 x 0.79“], with flat 1 = axial cable, 2 m [6.56‘] PUR 0100 = 10 m [32.81‘]
1 = 12 x 25 mm [0.47 x 0.98“], 2 = radial cable, 2 m [6.56‘] PUR 0150 = 15 m [49.21‘]
with keyway for 4 x 4 mm [0.16 x 0.16“] key A = axial cable, length > 2 m [6.56‘]
B = radial cable, length > 2 m [6.56‘]

Accessory Order no.
EMC shield terminal for top-hat rail mounting 8.0000.4G06.0000
Screw retention Loctite 243, 5 ml 8.0000.4G05.0000

Bellows coupling, safety-oriented You will find an overview of our couplings for Sendix SIL shaft encoders in the accessories
section or under www.kuebler.com/accessories.

Safety modules Safety-M compact / modular You will find an overview of our systems and components for Functional Safety and the
corresponding software in the safety technology section or under www.kuebler.com/safety.

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

1) Not applicable with connection types 1 and 2.
