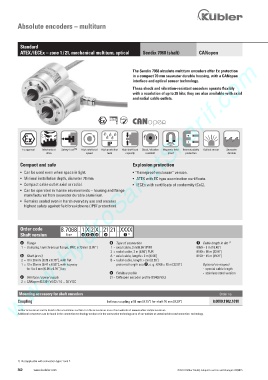

Absolute encoders – multiturn

Standard
ATEX / IECEx – zone 1 / 21, mechanical multiturn, optical Sendix 7068 (shaft) CANopen
www.HydroSanatSharif.com

The Sendix 7068 absolute multiturn encoders offer Ex protection
in a compact 70 mm seawater durable housing, with a CANopen
interface and optical sensor technology.
These shock and vibration-resistant encoders operate flexibly
with a resolution of up to 28 bits; they are also available with axial
and radial cable outlets.

RoHS
RoHS

IP
Ex approval Mechanical Safety-Lock TM High rotational High protection High shaft load Shock / vibration Magnetic field Reverse polarity Optical sensor Seawater
drive speed level capacity resistant proof protection durable

Compact and safe Explosion protection
• Can be used even when space is tight. • “Flameproof-enclosure” version.
• Minimal installation depth, diameter 70 mm. • ATEX with EC type examination certificate.
• Compact cable outlet axial or radial. • IECEx with certificate of conformity (CoC).
• Can be operated in marine environments – housing and flange
manufactured from seawater durable aluminium.
• Remains sealed even in harsh everyday use and ensures
highest safety against field breakdowns (IP67 protection).

Order code 8.7068 . 1 X 2 X . 21 21 . XXXX
Shaft version Type a b c d e f 1)

a Flange d Type of connection f Cable length in dm 1)
1 = clamping / synchronous flange, IP67, ø 70 mm [2.76“] 1 = axial cable, 2 m [6.56‘] PUR 0050 = 5 m [16.40‘]
2 = radial cable, 2 m [6.56‘] PUR 0100 = 10 m [32.81‘]
b Shaft (ø x L) A = axial cable, length > 2 m [6.56‘] 0150 = 15 m [49.21‘]
2 = 10 x 20 mm [0.39 x 0.79“], with flat B = radial cable, length > 2 m [6.56‘]
1 = 12 x 25 mm [0.47 x 0.98“], with keyway preferred length see f , e. g.: 0100 = 10 m [32.81‘] Optional on request
for 4 x 4 mm [0.16 x 0.16“] key - special cable length
e Fieldbus profile - stainless steel version
c Interface / power supply 21 = CANopen encoder profile DS406 V3.2
2 = CANopen DS301 V4.02 / 10 ... 30 V DC

Mounting accessory for shaft encoders Order no.
Coupling bellows coupling ø 19 mm [0.75“] for shaft 10 mm [0.39“] 8.0000.1102.1010

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

1) Not applicable with connection types 1 and 2.
