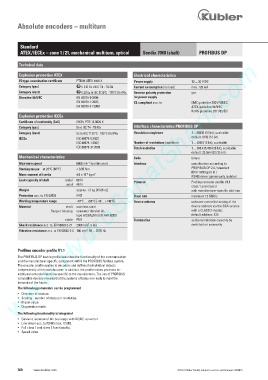

Absolute encoders – multiturn

Standard
ATEX / IECEx – zone 1 / 21, mechanical multiturn, optical Sendix 7068 (shaft) PROFIBUS DP
www.HydroSanatSharif.com
Technical data
Explosion protection ATEX Electrical characteristics
EC type-examination certificate PTB09 ATEX 1106 X Power supply 10 ... 30 V DC
Category (gas) II 2 G Ex d IIC T4 - T6 Gb Current consumption (no load) max. 120 mA
Category (dust) II 2D Ex tb IIIC T135°C - T85°C Db IP6x Reverse polarity protection yes
Directive 94/9/EC EN 60079-0:2009; for power supply
EN 60079-1:2007; CE compliant acc. to EMC guideline 2004/108/EC
EN 60079-31:2009 ATEX guideline 94/9/EC
RoHS guideline 2011/65/EU
Explosion protection IECEx
Certificate of conformity (CoC) IECEx PTB 13.0026 X
Category (gas) Ex d IIC T4 - T6 Gb Interface characteristics PROFIBUS DP
Category (dust) Ex tb IIIC T135°C - T85°C Db IP6x Resolution singleturn 1 ... 65536 (16 bit), scaleable
default: 8192 (13 bit)
IECEx IEC 60079-0:2007;
IEC 60079-1:2007; Number of revolutions (multiturn) 1 ... 4096 (12 bit), scaleable
IEC 60079-31:2008 Total resolution 1 ... 268.435.456 (28 bit), scaleable
default: 33.554.432 (25 bit)
Mechanical characteristics Code binary
-1
Maximum speed 6000 min (continuous) Interface specification according to
Starting torque – at 20°C [68°F] < 0.05 Nm PROFIBUS DP 2.0 / standard
(DIN 19245 part 3) /
-6
Mass moment of inertia 4.0 x 10 kgm 2
RS485 driver galvanically isolated
Load capacity of shaft radial 80 N Protocol Profibus encoder profile V1.1
axial 40 N
class 1 and class 2
Weight approx. 1.3 kg [45.86 oz] with manufacturer-specific add-ons
Protection acc. to EN 60529 IP67 Baud rate maximum 12 Mbit/s
Working temperature range -40°C ... +60°C [-40 ... +140°F] Device address software controlled setting of the
Material shaft stainless steel device address via the SSA-service
flange / housing seawater durable Al, with a CLASS 2-master,
type AlSiMgMn (EN AW-6082) default address: 125
cable PUR Termination active termination can only be
2
Shock resistance acc. to. EN 60068-2-27 2500 m/s , 6 ms switched on externally
2
Vibration resistance acc. to EN 60068-2-6 100 m/s , 55 ... 2000 Hz

Profibus encoder profile V1.1
The PROFIBUS DP device profile describes the functionality of the communication
and the manufacturer-specific component within the PROFIBUS fieldbus system.
The encoder profile applies to encoders and defines the individual objects
independently of the manufacturer. In addition, the profile makes provision for
additional extended functions specific to the manufacturer. The use of PROFIBUS
compatible devices ensures that the systems of today are ready to meet the
demands of the future.
The following parameters can be programmed
• Direction of rotation.
• Scaling – number of steps per revolution.
• Preset value.
• Diagnostics mode.
The following functionality is integrated
• Galvanic isolation of the bus stage with DC/DC converter.
• Line driver acc. to RS485 max. 12 MB.
• Full class 1 and class 2 functionality.
• Speed value.

360 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
