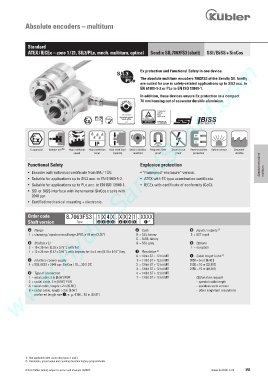

Absolute encoders – multiturn

Standard
ATEX / IECEx – zone 1 / 21, SIL3/PLe, mech. multiturn, optical Sendix SIL 7063FS3 (shaft) SSI / BiSS + SinCos
www.HydroSanatSharif.com

Ex protection and Functional Safety in one device.
The absolute multiturn encoders 7063FS3 of the Sendix SIL family
are suited for use in safety-related applications up to SIL3 acc. to
EN 61800-5-2 or PLe to EN ISO 13849-1.
In addition, these devices ensure Ex protection in a compact
70 mm housing out of seawater durable aluminium.

RoHS

IP
Ex approval Safety-Lock TM High rotational High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor Seawater
speed level capacity resistant proof proof protection durable

Functional Safety Explosion protection Absolute encoders
• Encoder with individual certificate from IFA / TÜV. • “Flameproof-enclosure” version. multiturn
• Suitable for applications up to SIL3 acc. to EN 61800-5-2. • ATEX with EC type examination certificate.
• Suitable for applications up to PLe acc. to EN ISO 13849-1. • IECEx with certificate of conformity (CoC).
• SSI or BiSS interface with incremental SinCos tracks with
2048 ppr.
• Certified mechanical mounting + electronic.

Order code 8.7063FS3 . 1 X 4 X . X X 2 1 . XXXX
Shaft version Type a b c d e f g h i 1)
a Flange e Code g Inputs / outputs 2)

1 = clamping / synchronous flange, IP67, ø 70 mm [2.76“] B = SSI, binary 2 = SET input
C = BiSS, binary
b Shaft (ø x L) G = SSI, gray h Options
2 = 10 x 20 mm [0.39 x 0.79“], with flat 1 = no option
1 = 12 x 25 mm [0.47 x 0.98“], with keyway for 4 x 4 mm [0.16 x 0.16“] key f Resolution 2)
A = 10 bit ST + 12 bit MT i Cable length in dm 1)
c Interface / power supply 1 = 11 bit ST + 12 bit MT 0050 = 5 m [16.40‘]
4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC 2 = 12 bit ST + 12 bit MT 0100 = 10 m [32.81‘]
3 = 13 bit ST + 12 bit MT 0150 = 15 m [49.21‘]
d Type of connection 4 = 14 bit ST + 12 bit MT
1 = axial cable, 2 m [6.56‘] PUR 7 = 17 bit ST + 12 bit MT Optional on request
2 = radial cable, 2 m [6.56‘] PUR - special cable length
A = axial cable, length > 2 m [6.56‘] - stainless steel version
B = radial cable, length > 2 m [6.56‘] - other singleturn resolutions
preferred length see i , e. g.: 0100 = 10 m [32.81‘]

1) Not applicable with connection types 1 and 2.
2) Resolution, preset value and counting direction factory-programmable.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 355
