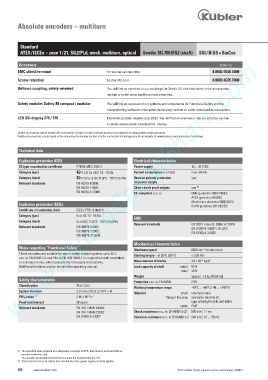

Absolute encoders – multiturn

Standard
ATEX / IECEx – zone 1 / 21, SIL2/PLd, mech. multiturn, optical Sendix SIL 7063FS2 (shaft) SSI / BiSS + SinCos
www.HydroSanatSharif.com
Accessory Order no.
EMC shield terminal for top-hat rail mounting 8.0000.4G06.0000

Screw retention Loctite 243, 5 ml 8.0000.4G05.0000
Bellows coupling, safety-oriented You will find an overview of our couplings for Sendix SIL shaft encoders in the accessories
section or under www.kuebler.com/accessories.
Safety modules Safety-M compact / modular You will find an overview of our systems and components for Functional Safety and the
corresponding software in the safety technology section or under www.kuebler.com/safety.
LED SSI display 570 / 575 Electronic position display up to 32 bit. You will find an overview in the accessories section
or under www.kuebler.com/position_display.
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data

Explosion protection ATEX Electrical characteristics
EC type-examination certificate PTB09 ATEX 1106 X Power supply 10 ... 30 V DC
Category (gas) II 2 G Ex d IIC T4 - T6 Gb Current consumption (no load) max. 50 mA
Category (dust) II 2D Ex tb IIIC T135°C - T85°C Db IP6x Reverse polarity protection yes
Relevant standards EN 60079-0:2009; for power supply
EN 60079-1:2007; Short circuit proof outputs yes 2)
EN 60079-31:2009 CE compliant acc. to EMC guideline 2004/108/EC
ATEX guideline 94/9/EC
Machinery directive 2006/42/EC
Explosion protection IECEx RoHS guideline 2011/65/EU
Certificate of conformity (CoC) IECEx PTB 13.0026 X
Category (gas) Ex d IIC T4 - T6 Gb
EMC
Category (dust) Ex tb IIIC T135°C - T85°C Db IP6x Relevant standards EN 55011 class B :2009 / A1:2010
Relevant standards IEC 60079-0:2007; EN 61000-6-3:2007 / A1:2011
IEC 60079-1:2007; EN 61000-6-2:2005
IEC 60079-31:2008
Mechanical characteristics
Notes regarding “Functional Safety” -1
Maximum speed 6000 min (continuous)
These encoders are suitable for use in safety-related systems up to SIL2 Starting torque – at 20°C [68°F] < 0.05 Nm
acc. to EN 61800-5-2 and PLd to EN ISO 13849-1 in conjunction with controllers -6 2
or evaluation units, which possess the necessary functionality. Mass moment of inertia 4.0 x 10 kgm
Additional functions can be found in the operating manual. Load capacity of shaft radial 80 N
axial 40 N
Weight approx. 1.3 kg [45.86 oz]
Safety characteristics
Protection acc. to EN 60529 IP67
Classification PLd / SIL2
Working temperature range -40°C ... +60°C [-40 ... +140°F]
System structure 2 channel (Cat. 3 / HFT = 1)
Material shaft stainless steel
PFH d value 1) 2.16 x 10 h -1 flange / housing seawater durable Al,
-8
Proof-test interval 20 years type AlSiMgMn (EN AW-6082)
cable PUR
Relevant standards EN ISO 13849-1:2008;
2
EN ISO 13849-2:2013; Shock resistance acc. to. EN 60068-2-27 500 m/s , 11 ms
EN 61800-5-2:2007 Vibration resistance acc. to EN 60068-2-6 200 m/s , 10 ... 150 Hz
2

1) The specified value is based on a diagnostic coverage of 90 %, that must be achieved with an
encoder evaluation unit.
The encoder evaluation unit must meet at least the requirements for SIL2.
2) Short circuit to 0 V or to output, one channel at a time, power supply correctly applied.
352 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
