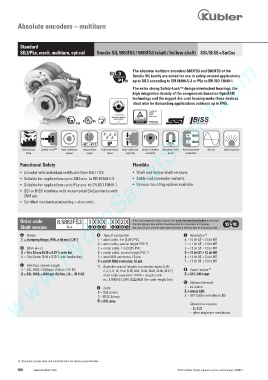

Page 302 - Keubler Motion Sensors

Absolute encoders – multiturn

Standard
SIL3/PLe, mech. multiturn, optical Sendix SIL 5863FS3 / 5883FS3 (shaft / hollow shaft) SSI / BiSS + SinCos
www.HydroSanatSharif.com

The absolute multiturn encoders 5863FS3 and 5883FS3 of the
Sendix SIL family are suited for use in safety-related applications
up to SIL3 according to EN 61800-5-2 or PLe to EN ISO 13849-1.
The extra strong Safety-Lock™ design interlocked bearings, the
high integration density of the components based on OptoASIC
technology and the rugged die-cast housing make these devices
ideal also for demanding applications outdoors up to IP65.

RoHS
2/22

-40°... +90°C IP
Mechanical Safety-Lock TM High rotational Temperature High protection High shaft load Shock / vibration Magnetic field Reverse polarity SinCos Optical sensor
drive speed range level capacity resistant proof protection

Functional Safety Flexible
• Encoder with individual certificate from IFA / TÜV. • Shaft and hollow shaft versions.
• Suitable for applications up to SIL3 acc. to EN 61800-5-2. • Cable and connector variants.
• Suitable for applications up to PLe acc. to EN ISO 13849-1. • Various mounting options available.
• SSI or BiSS interface with incremental SinCos tracks with
2048 ppr.
• Certified mechanical mounting + electronic.

Order code 8.5863FS3 . 1 X X X . X X 2 X If for each parameter of an encoder the underlined preferred option is selected,
then the delivery time will be 10 working days for a maximum of 10 pieces.
Shaft version Type a b c d e f g h Qts. up to 50 pcs. of these types generally have a delivery time of 15 working days.
a Flange d Type of connection f Resolution 1)
1 = clamping flange, IP65, ø 58 mm [2.28“] 1 = axial cable, 1 m [3.28‘] PVC A = 10 bit ST + 12 bit MT
A = axial cable, special length PVC *) 1 = 11 bit ST + 12 bit MT
b Shaft (ø x L) 2 = radial cable, 1 m [3.28‘] PVC 2 = 12 bit ST + 12 bit MT
2 = 10 x 20 mm [0.39 x 0.79“], with flat B = radial cable, special length PVC *) 3 = 13 bit ST + 12 bit MT
A = 10 x 20 mm [0.39 x 0.79“], with feather key 3 = axial M23 connector, 12-pin 4 = 14 bit ST + 12 bit MT
4 = radial M23 connector, 12-pin 7 = 17 bit ST + 12 bit MT
c Interface / power supply *) Available special lengths (connection types A, B):
3 = SSI, BiSS + 2048 ppr. SinCos / 5 V DC 2, 3, 5, 8, 10, 15 m [5.56, 9.84, 16.40, 26.25, 32.80, 49.21‘] g Input / output 1)

4 = SSI, BiSS + 2048 ppr. SinCos / 10 ... 30 V DC order code expansion .XXXX = length in dm 2 = SET, DIR input
ex.: 8.5863FS3.124A.G322.0030 (for cable length 3 m)
h Options (service)
1 = no option
e Code
B = SSI, binary 2 = status LED
C = BiSS, binary 3 = SET button and status LED
G = SSI, gray
Optional on request
- Ex 2/22
- other singleturn resolutions

1) Resolution, preset value and count direction are factory-programmable.
