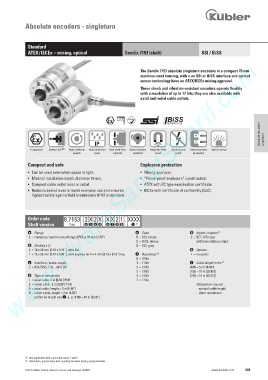

Absolute encoders - singleturn

Standard
ATEX / IECEx – mining, optical Sendix 7153 (shaft) SSI / BiSS
www.HydroSanatSharif.com

The Sendix 7153 absolute singleturn encoders in a compact 70 mm
stainless-steel housing, with a an SSI or BiSS interface and optical
sensor technology have an ATEX/IECEx mining approval.
These shock and vibration-resistant encoders operate flexibly
with a resolution of up to 17 bits; they are also available with
axial and radial cable outlets.

RoHS
Absolute encoders

IP singleturn
Ex approval Safety-Lock TM High rotational High protection High shaft load Shock / vibration Magnetic field Short-circuit Reverse polarity Optical sensor
speedv level capacity resistant proof proof protection

Compact and safe Explosion protection
• Can be used even when space is tight. • Mining approval.
• Minimal installation depth, diameter 70 mm. • “Flame-proof enclosure” construction.
• Compact cable outlet axial or radial. • ATEX with EC type examination certificate.
• Remains sealed even in harsh everyday use and ensures • IECEx with certificate of conformity (CoC).
highest safety against field breakdowns (IP67 protection).

Order code 8.7153 . 2 X 2 X . X X 2 1 . XXXX
Shaft version Type a b c d e f g h i 1)
a Flange e Code g Inputs / outputs 2)

2 = clamping / synchronous flange, IP67, ø 70 mm [2.76“] B = SSI, binary 2 = SET, DIR input
C = BiSS, binary additional status output
b Shaft (ø x L) G = SSI, gray
2 = 10 x 20 mm [0.39 x 0.79“], with flat h Options
1 = 12 x 25 mm [0.47 x 0.98“], with keyway for 4 x 4 mm [0.16 x 0.16“] key f Resolution 2) 1 = no option
A = 10 bit
c Interface / power supply 1 = 11 bit i Cable length in dm 1)
2 = SSI, BiSS / 10 ... 30 V DC 2 = 12 bit 0050 = 5 m [16.40‘]
3 = 13 bit 0100 = 10 m [32.81‘]
d Type of connection 4 = 14 bit 0150 = 15 m [49.21‘]
1 = axial cable, 2 m [6.56‘] PUR 7 = 17 bit
2 = radial cable, 2 m [6.56‘] PUR Optional on request
A = axial cable, length > 2 m [6.56‘] - special cable length
B = radial cable, length > 2 m [6.56‘] - other resolutions
preferred length see i , e. g.: 0100 = 10 m [32.81‘]

1) Not applicable with connection types 1 and 2
2) Resolution, preset value and counting direction factory-programmable.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 249
